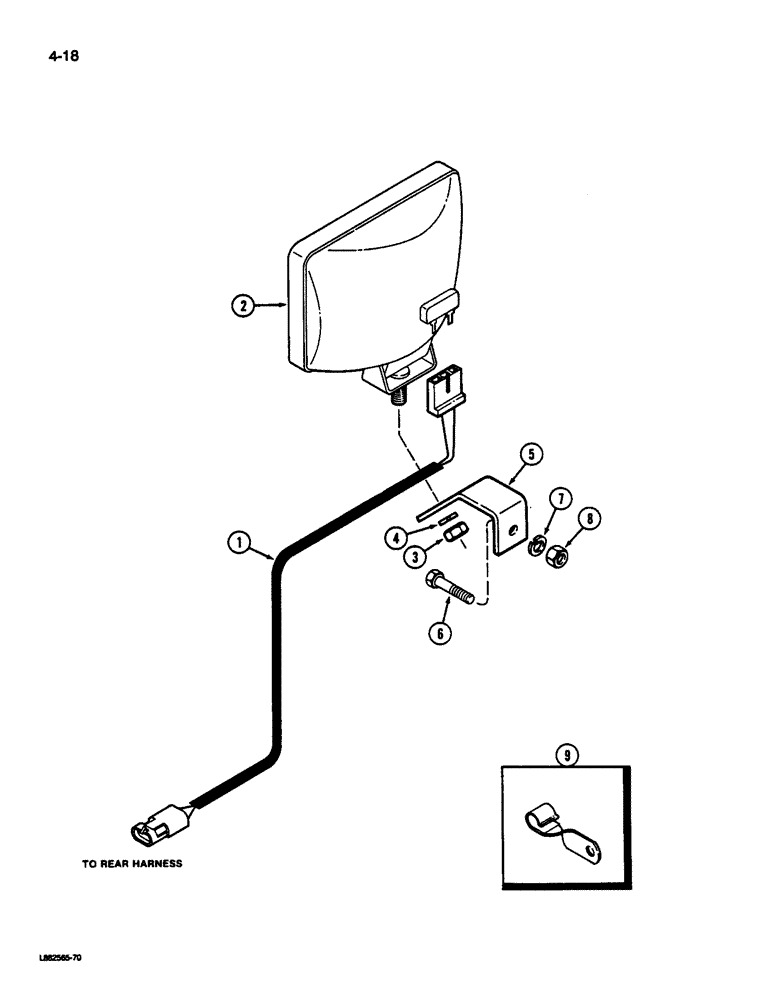

Запчасти Case IH 1844 (4-18) - CONVEYOR LAMP AND HARNESS (06) - ELECTRICAL SYSTEMS

1

245973C2

HARNESS

ASSEMBLY - conveyor

1шт.

2

245897C91

LAMP, WORK

LAMP ASSEMBLY - conveyor (80 x 30 Halogen flood)

1шт.

3

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

561915R1

BRACKET

- lamp

1шт.

6

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

120377

NUT,3/8" - 16, Gr 5

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - conveyor light harness

3шт.
