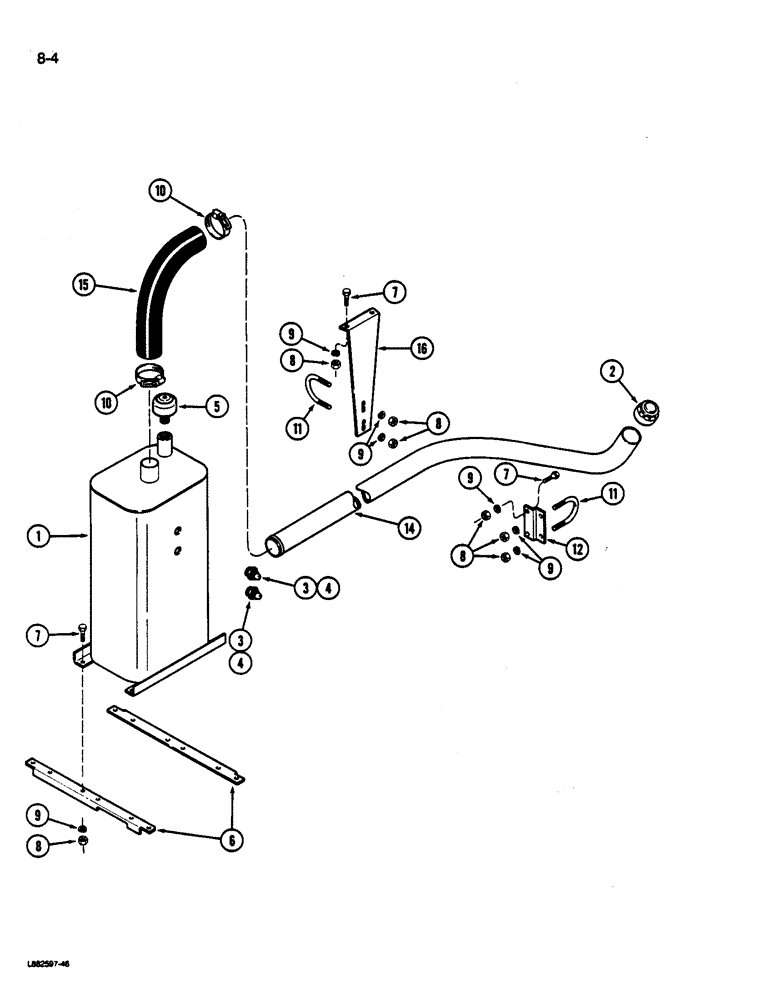

Запчасти Case IH 1844 (8-04) - HYDRAULIC RESERVOIR, 1844 COTTON PICKER (07) - HYDRAULICS

1272252C92

RESERVOIR

ASSEMBLY - hydraulic with breather

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic (Order 1272252C92)

1шт.

2

1272941C1

CAP

- breather

1шт.

3

244600R92

SIGHTGLASS

GLASS ASSEMBLY - sight

2шт.

4

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 inch

2шт.

5

923745C91

BREATHER ASSY.

BREATHER ASSEMBLY - reservoir

1шт.

6

1288807C2

ANGLE BAR

ANGLE - reservoir support

2шт.

7

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

8шт.

8

120377

NUT,3/8" - 16, Gr 5

12шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

10

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP - hose, No. 48 shoe, Type F

2шт.

11

814881C1

BOLT,3/8" - 16 x 3 1/2"

U-BOLT - clamp

2шт.

12

87188C1

ANGLE

- fill tube clamp

1шт.

14

1329311C1

TUBE

- reservoir filler (Replaces tube 1288933C2 prior to P.I.N. 701 by also ordering elbow 1329201C1)

1шт.

15

1329201C1

FITTING

ELBOW - reservoir filler tube (Replaces connector tube 1288986C1 prior to P.I.N. 701 by also ordering tube 1329311C1)

1шт.

16

1329257C1

ANGLE

SUPPORT - filler tube

1шт.
