(8-34) - BASKET LIFT VALVE

Запчасти Case IH 1844 (8-34) - BASKET LIFT VALVE (07) - HYDRAULICS

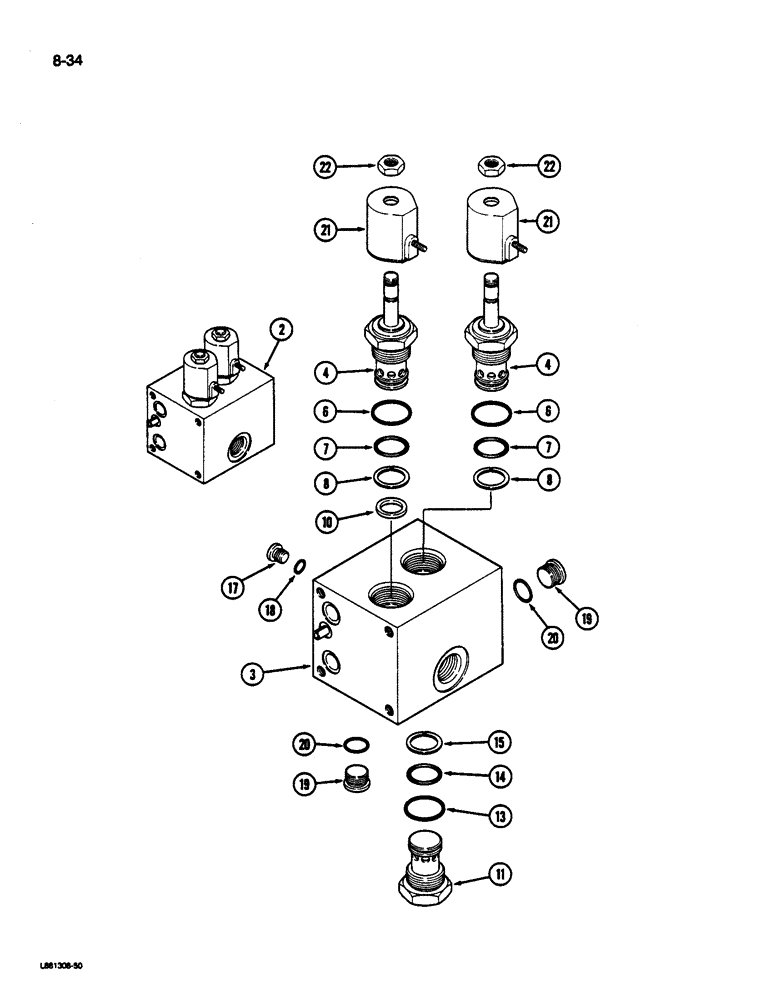

Схема запчастей Case IH 1844 - (8-34) - BASKET LIFT VALVE (07) - HYDRAULICS
19
8
6
19
21
11
13
22
10
14
22
18
8
2
21
7
15
20
7
4
4
20
6
17
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

1288952C91

VALVE

ASSEMBLY - basket lift

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1288952C91)

1шт.

4

1288953C1

VALVE

- solenoid two-way

2шт.

1288954C1

SEAL KIT

KIT - solenoid valve seal

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

10

1288961C1

LARGE PLATE

PLATE - orifice

1шт.

11

1288955C1

VALVE

- check

1шт.

1288954C1

SEAL KIT

KIT - check valve seal

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

17

1288962C1

PLUG

- hex socket head, 7/16-20 inch

1шт.

18

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

19

224582C1

PLUG

- hex socket head, 3/4-16 inch

2шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

2шт.

21

1288956C2

SOLENOID

COIL - valve

2шт.

22

9403292

LOCK NUT,Blkhd, 1/2"-20

NUT - bulkhead union lock, 5/16 inch

2шт.
