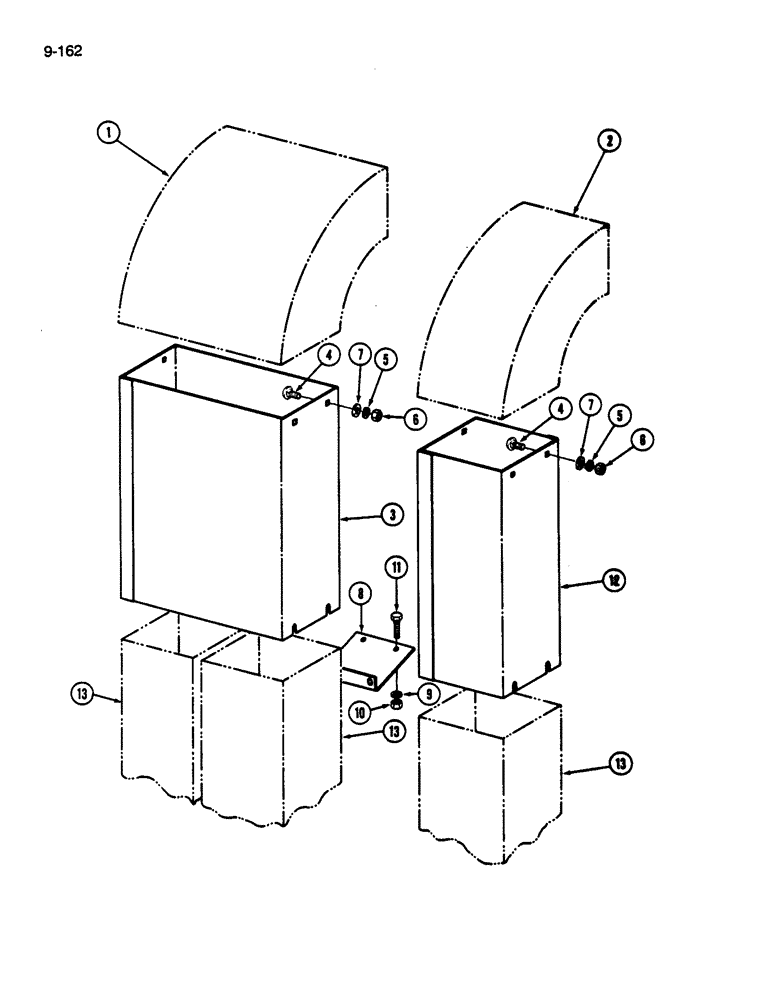

Запчасти Case IH 1844 (9-162[A]) - CONVEYOR CHUTE SHORT EXTENSIONS, 1844 COTTON PICKER (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

HOOD - double chute (See Figure 9-160)

2шт.

2

REF

INSTRUCTION

HOOD - single chute (See Figure 9-160)

4шт.

3

1278610C1

CHUTE (DOWNWARD)

CHUTE - short double, 14 inch

2шт.

4

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

24шт.

5

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

6

120376

NUT,5/16"-18, G5

24шт.

7

120395

WASHER

- flat, 15/32 x 59/64 x 3/64 inch

24шт.

8

Not used this application

1шт.

9

Not used this application

1шт.

10

Not used this application

1шт.

11

Not used this application

1шт.

12

1278606C1

CHUTE (DOWNWARD)

CHUTE - short single, 14 inch

4шт.

13

REF

INSTRUCTION

CHUTE - main (See Figure 9-160)

8шт.
