(9-184) - BASKET TOP, 1844 COTTON PICKER

Запчасти Case IH 1844 (9-184) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET

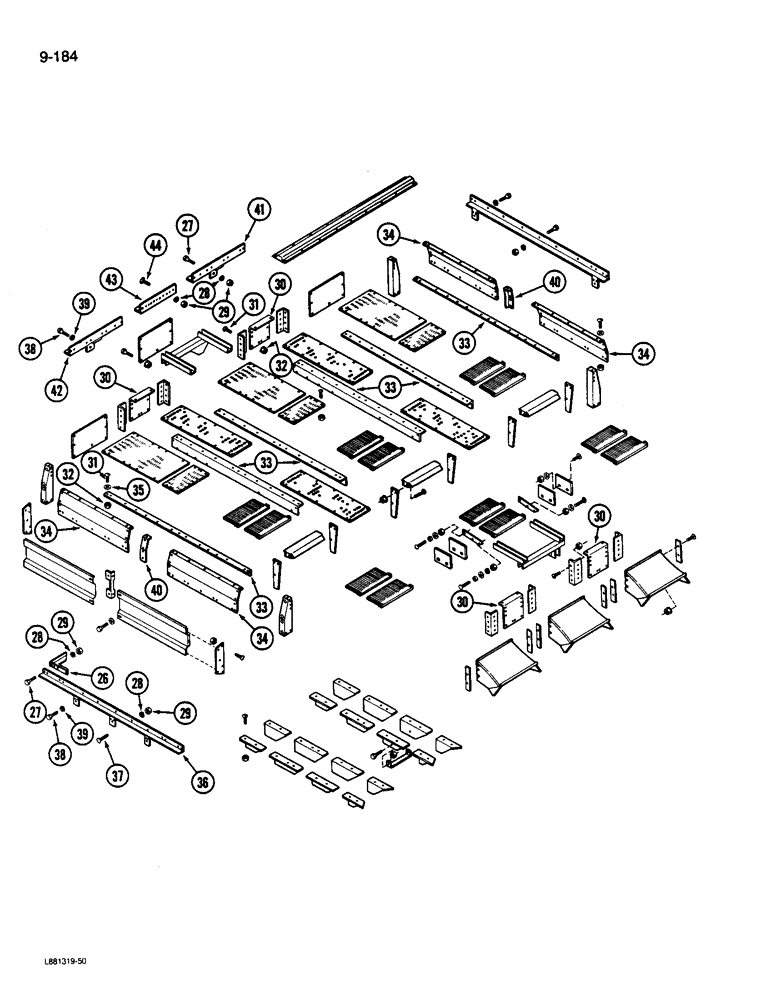

Схема запчастей Case IH 1844 - (9-184) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET
33
37
29
35
30
34
39
33
38
26
30
34
33
40
32
27
33
28
40
38
44
28
28
27
42
39
31
36
41
34
30
31
29
43
34
30
29
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87295C91

CONTAINER

TOP ASSEMBLY - basket

1шт.

26

1278117C1

ANGLE

BRACE - corner

4шт.

27

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

28

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

120377

NUT,3/8" - 16, Gr 5

1шт.

30

1260281C2

SUPPORT

- plate

4шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

33

1260291C3

ANGLE

- support

6шт.

34

1260280C2

COVER

- side

4шт.

35

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

36

1288774C2

ANGLE

- side, right

1шт.

37

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

38

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

1шт.

39

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

40

1260292C1

SUPPORT

- basket

1шт.

41

1288777C2

ANGLE BAR

ANGLE - support. left (Front and Rear)

2шт.

42

1288778C2

ANGLE BAR

ANGLE - support, right (Front and Rear)

1шт.

43

1270062C1

ANGLE BAR

ANGLE - support, tie

2шт.

44

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck.3/8 NC x 1 inch

1шт.
