(9-186) - BASKET TOP, 1844 COTTON PICKER

Запчасти Case IH 1844 (9-186) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET

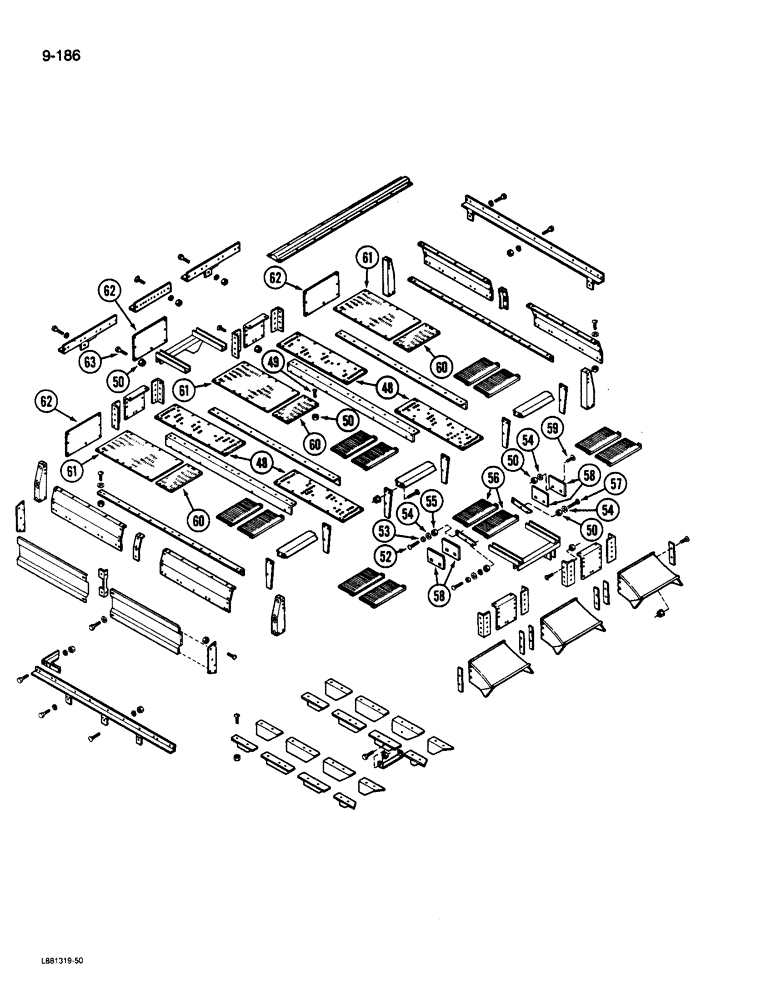

Схема запчастей Case IH 1844 - (9-186) - BASKET TOP, 1844 COTTON PICKER (16) - BASKET
50
58
60
48
61
52
54
54
61
62
62
53
60
63
48
50
60
49
58
57
50
56
50
55
62
54
61
59
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87295C91

CONTAINER

TOP ASSEMBLY - basket

1шт.

48

1260282C4

LARGE PLATE

PLATE - extension

4шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

50

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

51

1260284C2

BAR

- cover door

2шт.

52

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

53

561277R1

SPACER,5/8" Tube x 1/2"

- 5/8 x 1/2 inch

2шт.

54

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

55

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

56

1260285C1

DEFLECTOR

- door

2шт.

57

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

58

1288762C1

LARGE PLATE

SUPPORT - grate

4шт.

59

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted, 3/8 NC x 1 inch

1шт.

60

87008C1

LARGE PLATE

PLATE - top, rear (Replaces 1270036C1)

3шт.

When replacing 1270036C1, order 87008C1 and 87793C1.

1шт.

61

87793C1

LARGE PLATE

PLATE - top, front

3шт.

62

1270164C2

COVER

- rear

3шт.

63

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1

1шт.
