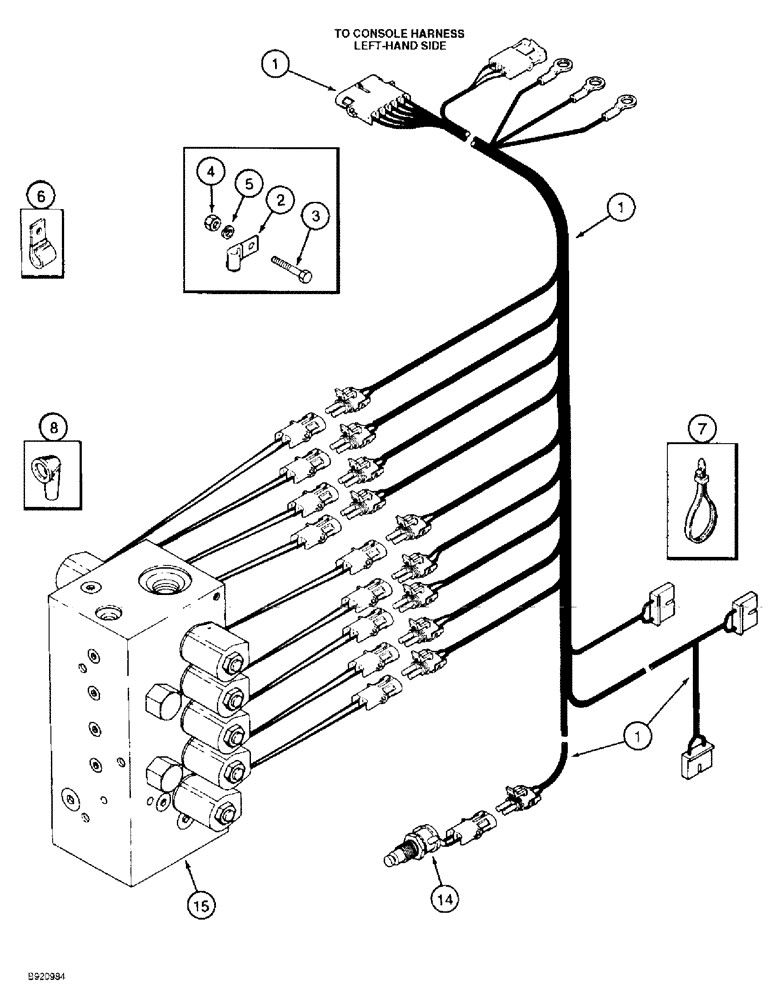

Запчасти Case IH 2022 (4-26) - BASKET HARNESS (06) - ELECTRICAL SYSTEMS

1

1987542C1

HARNESS

- basket

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

7шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

(Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

3шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

8

399470R1

BOOT

- cable

1шт.

14

1983297C2

IGNITION SWITCH

SWITCH - unloading limit

1шт.

15

1341926C1

VALVE

- basket control, see page 8-63

1шт.
