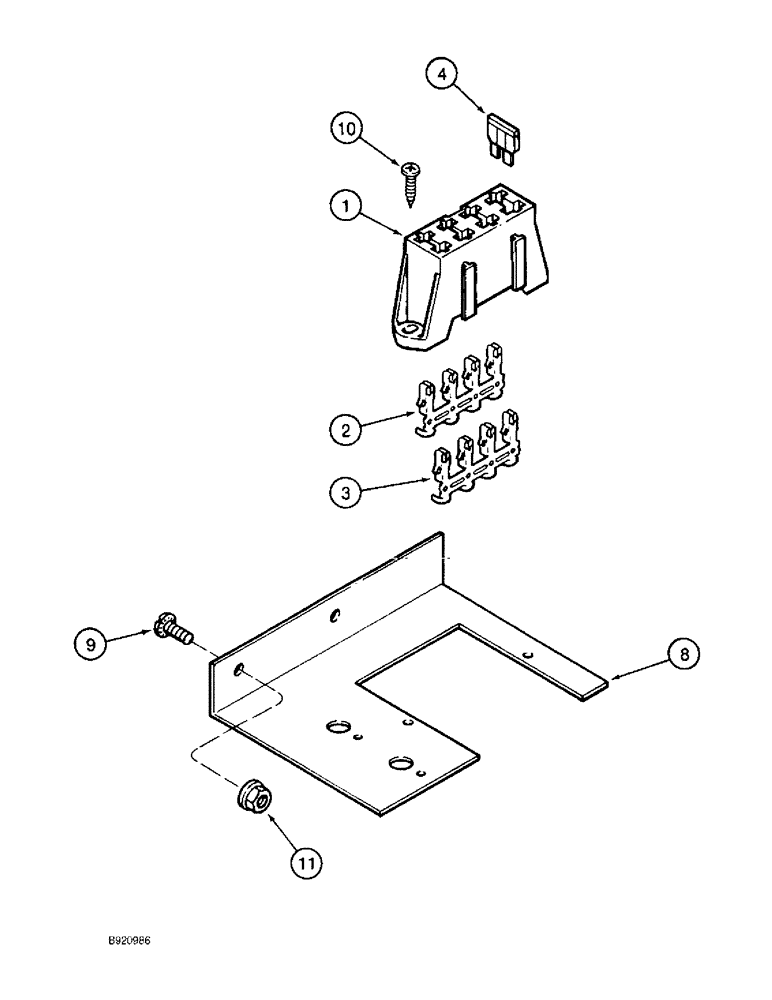

Запчасти Case IH 2022 (4-34) - FUSE AND FUSE BLOCK (06) - ELECTRICAL SYSTEMS

1

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse, see page 4-13, item 69

3шт.

2

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL - fuse block, type L10

1шт.

3

506498C1

TERMINAL CONNECTOR

TERMINAL - fuse block, type L11

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

4шт.

4

A149800

FUSE,10 Amp

- red, 10 ampere

2шт.

4

A149804

FUSE

- light green, 30 ampere

1шт.

4

A149798

FUSE

- tan, 5 ampere

3шт.

4

A149796

FUSE

- violet, 3 ampere

1шт.

4

A149799

FUSE

- brown, 7-1/2 ampere

1шт.

8

1280162C3

SUPPORT

- fuse block

1шт.

9

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- slotted truss head, polyseal, 1/4 NC x 1/2 inch

2шт.

10

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.
