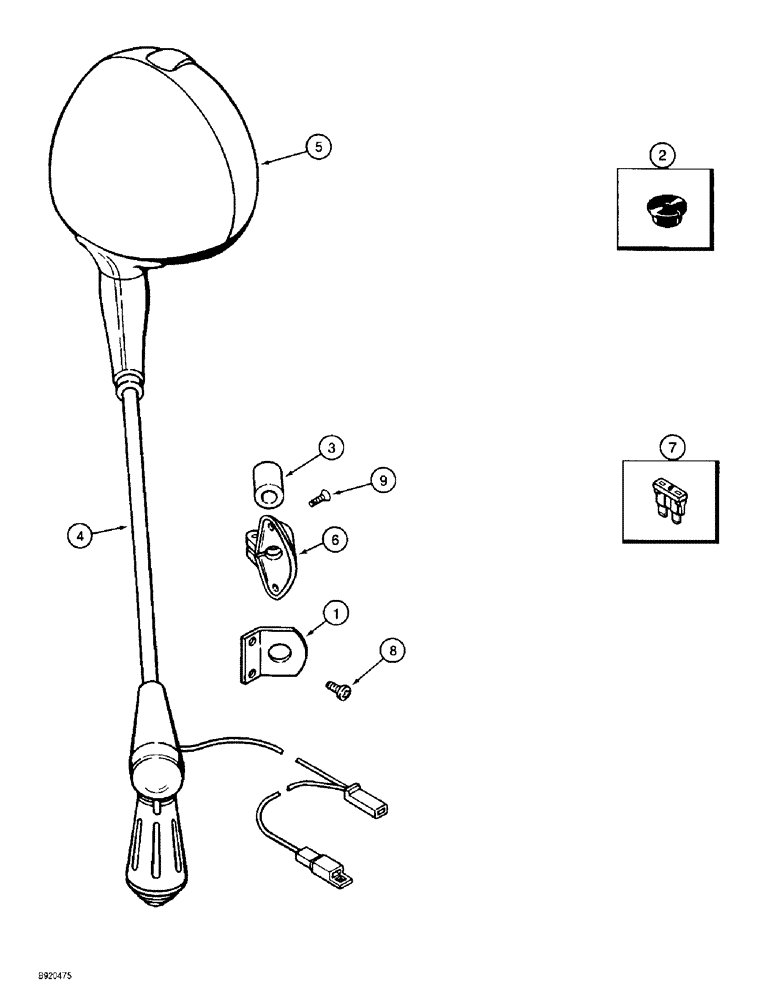

Запчасти Case IH 2022 (4-64) - CAB SPOTLAMP (06) - ELECTRICAL SYSTEMS

1323590C91

LAMP BASE

KIT - flood lamp, no longer available, order components

1шт.

1

1329859C1

BRACKET

- spotlamp

1шт.

2

1330144C1

GROMMET

- wire

1шт.

3

1330145C1

BUSHING

- bracket

1шт.

4

91938C1

INTERIOR LIGHT

SPOTLAMP ASSEMBLY - cab

1шт.

5

28753R1

LIGHT

LAMP - sealed beam, No. H7604

1шт.

6

92015C1

BRACKET

- spotlamp

1шт.

7

A149798

FUSE

- tan, 5 ampere

1шт.

7

A149799

FUSE

- brown, 7-1/2 ampere

1шт.

8

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head slotted, No. 10 NC x 3/8 inch

2шт.

9

265-1358

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, oval Phillips, No. 10-16 x 1/2 inch

2шт.

8-27571

INSTRUCTION

SHEET - installation instructions

1шт.
