(8-36) - DRUM LIFT CYLINDER

Запчасти Case IH 2022 (8-36) - DRUM LIFT CYLINDER (07) - HYDRAULICS

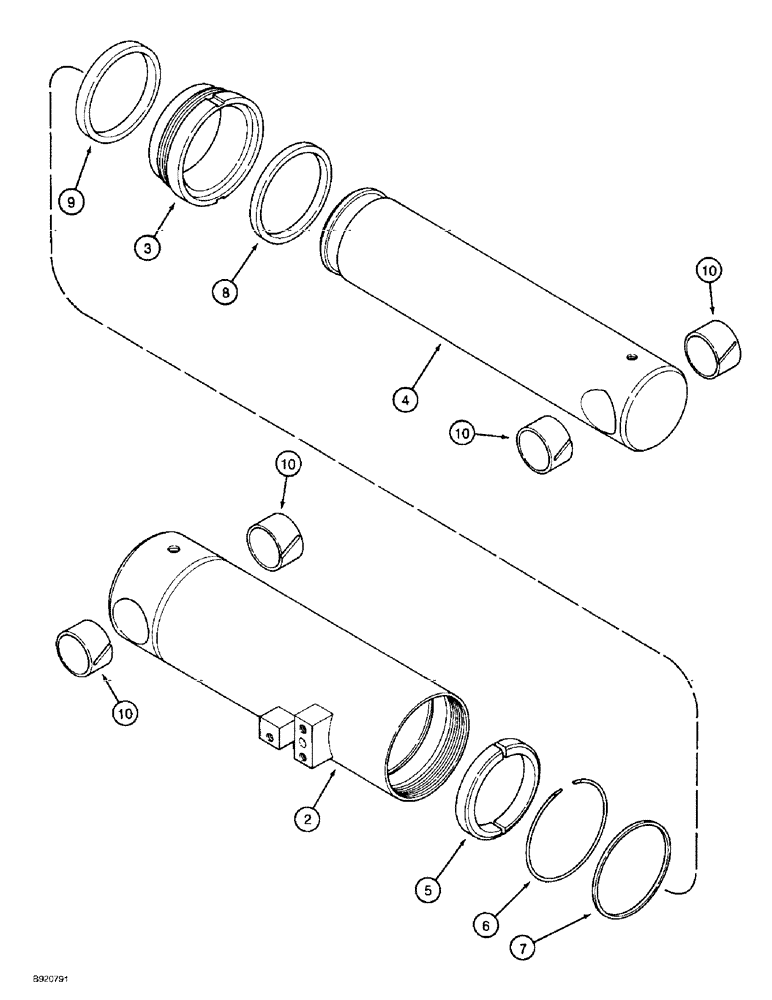

Схема запчастей Case IH 2022 - (8-36) - DRUM LIFT CYLINDER (07) - HYDRAULICS
9
5
10
3
2
10
8
10
10
5
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

93270C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - drum lift, no longer available, order lift cylinder assembly 85182C1, parts list page 8-39

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 93270C91

1шт.

3

1286343C1

JACK HEAD

HEAD - front

1шт.

4

1286339C1

STEM

ROD - piston

1шт.

5

93271C1

JACK PISTON

PISTON HALVES - cylinder, two pieces

1шт.

6

93275C1

JACK PISTON

RING - retaining

1шт.

7

1286342C1

WASHER

- U-cup backup

1шт.

1286344C91

SEAL KIT

KIT - O-ring

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rod U-cup

1шт.

10

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

- pivot

4шт.
