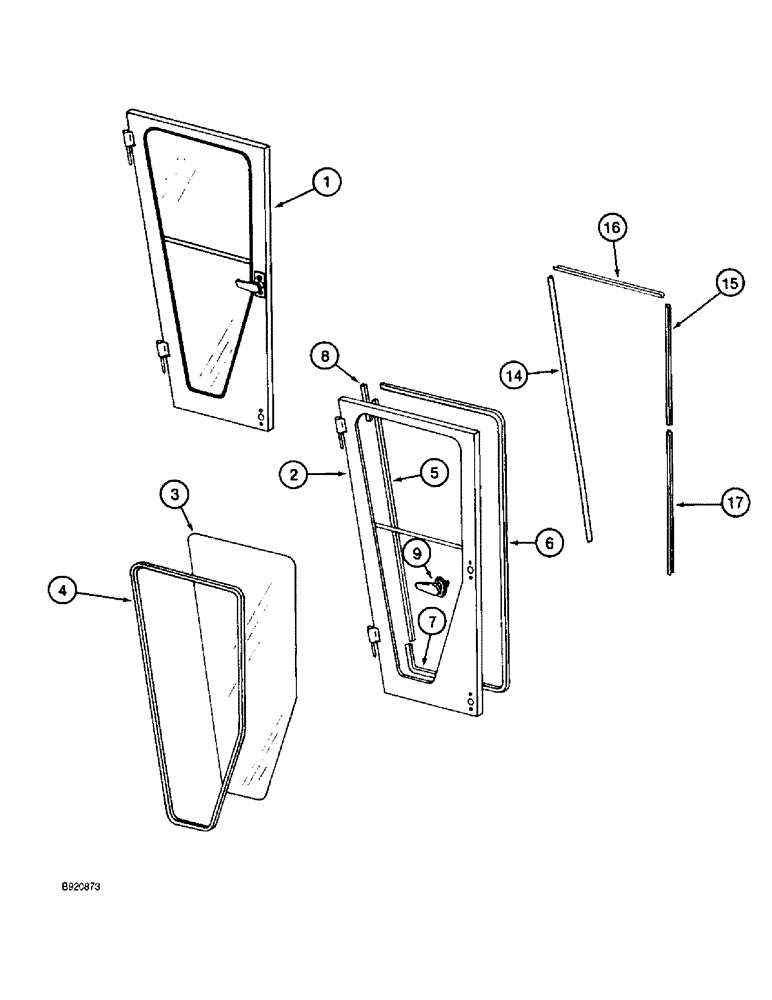

Запчасти Case IH 2022 (9E-14) - CAB DOOR (10) - CAB & AIR CONDITIONING

1

1329477C3

DOOR

ASSEMBLY - cab

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - cab, order door assembly 1329477C3

1шт.

3

198184C1

GLASS

- cab

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - door glass, 130-1/2 inch (3315 mm) long, cut from bulk seal 198131C2 below

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP - door front, 52 inch (1321 mm) long, cut from bulk stock 198522C1 below

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - door rear, 99 inch (2515 mm) long, cut from bulk stock 198522C1 below

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - door bottom, 19 inch (483 mm) long, cut from bulk stock 198522C1 below

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - door top front corner, 3-5/16 inch (84 mm) long, cut from bulk stock 198522C1 below

1шт.

9

REF

INSTRUCTION

HANDLE - door upper, see page 9D-17

1шт.

14

NSS

NOT SOLD SEPARAT

STRIP - cab door opening front, 54 inch (1372 mm) long, cut from bulk trim 1330108CX below

1шт.

15

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear upper, 24 inch (610 mm) long, cut from bulk trim 1330108CX below

1шт.

16

NSS

NOT SOLD SEPARAT

STRIP - cab door opening top, 26 inch (661 mm) long, cut from bulk trim 1330108CX below

1шт.

17

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear lower, 27 inch (686 mm) long, cut from bulk trim 1330108CX below

1шт.

198131C2

SEAL, GLASS

SEAL - bulk roll, 120 inch (3048 mm) sold by the foot

1шт.

198522C1

STRIP

SEAL - bulk roll, sold by the foot

1шт.

1330108CX

SEAL,304.8mm L

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.
