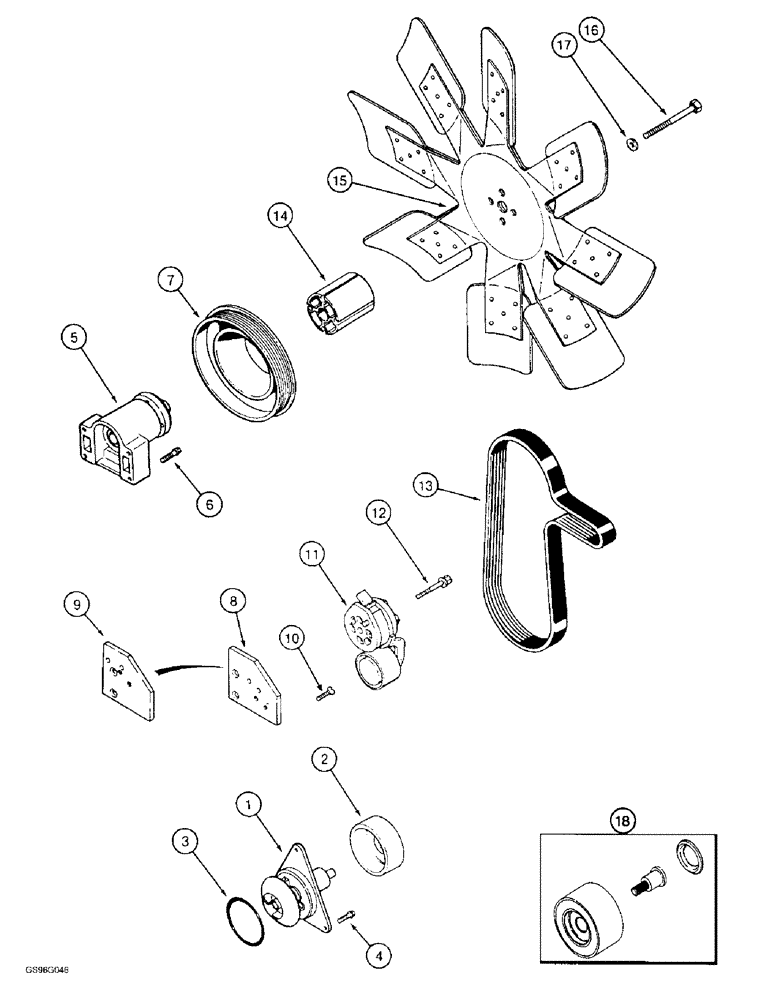

Запчасти Case IH 2022 (2-10) - WATER PUMP, FAN AND BELT, 6TA-830 ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
AR77704
PUMP, WATER
PUMP - water, remanufactured, North America only, no longer available, order kit A77704 below
1шт.
J800976R
REMAN-WATER PUMP
2022, 2044, Both 6TA-830 ENGINE (11/90-), Reman for New P/N AR77704
1шт.
AC77704
CORE-HYDRAULIC PUMP
RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
1шт.
J800976R
REMAN-WATER PUMP
2022, 2044, Both 6TA-830 ENGINE (11/90-), Reman for New P/N A77704
1шт.
6
845-8050
BOLT,Hvy Hex, M8 x 50mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 50 mm
4шт.
10
J925186
SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9
- flat head cap, hex socket, special, 8 - 1.25 x 25 mm (Replaces screw J903095)
2шт.
11
BELT TENSIONER
TENSIONER - belt, no longer available, order kit A77817 below
1шт.
12
854-10070
BOLT,Hvy Hex, M10 x 70mm, Cl 10.9
- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9
1шт.
13
J911561
BELT,27.92mm W x 1663.7mm L, 8 Ribs
Fan 3.56 mm W x 1663.70 mm L, 8 Ribs
1шт.
16
814-10130
BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8
- hex, 10 - 1.5 x 130 mm, class 8
4шт.
17
WASHER,11mm ID x 21mm OD x 2.5mm Thk
- flat, 11 x 21 x 2.5 mm, hardened
12шт.
