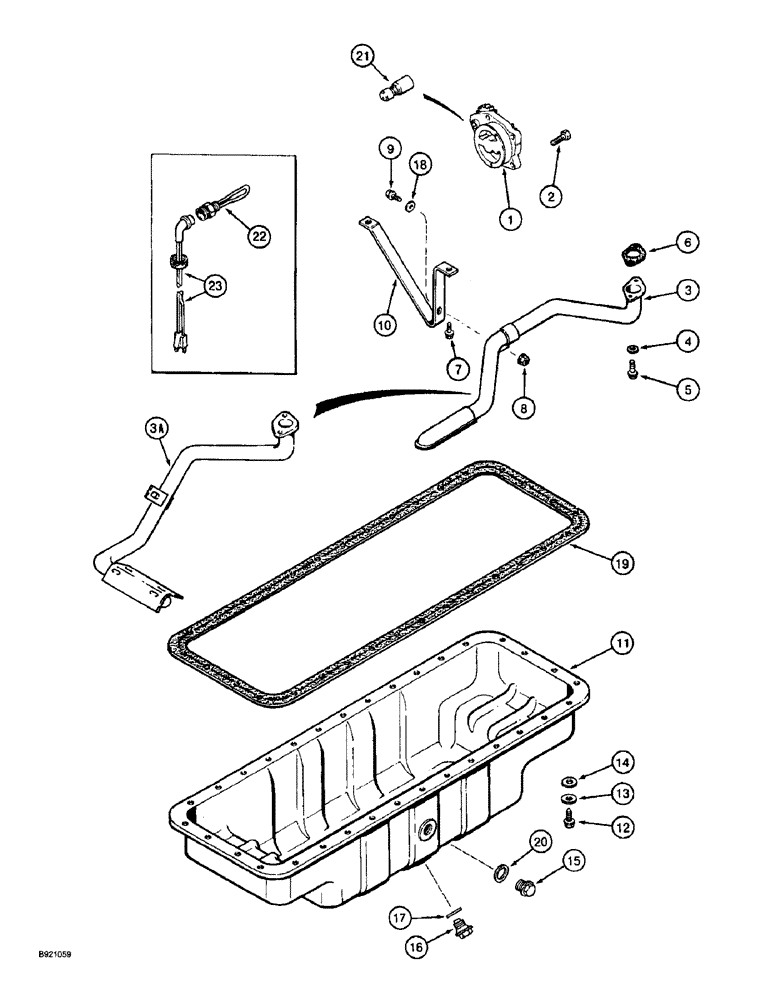

Запчасти Case IH 2022 (2-46) - OIL PUMP AND OIL PAN, 6TA-830 ENGINE (01) - ENGINE

1

J921067

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, new, 24 tooth drive gear, engine serial number 44487830 and after, no longer available, order pump assembly J930338 (See Note)

1шт.

JR921067

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, remanufactured, 24 tooth drive gear, North America only, used with engine serial number 44487830 and after, no longer available, order remanufactured assembly JR930338 below

1шт.

JC921067

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, engine serial number 44487830 and after

1шт.

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - engine oil, remanufactured, 28 tooth, North America only, prior to engine serial number 44487830, no longer available, order remanufactured assembly JR930338 below

1шт.

JC910066

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, prior to engine serial number 44487830

1шт.

1

J930338

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

1

J924644

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new, no longer available, order pump assembly J930338

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J912228

TUBE

TUBE - oil suction, no longer used, order tube J912228, item 3A

1шт.

3a

J921719

TUBE

TUBE - oil suction, includes screen

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 30 mm

2шт.

6

J914302

GASKET

GASKET - mounting, oil suction tube

1шт.

See Figure Note.

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

8

J906216

FLANGE NUT

NUT - hex flange, special, 6 mm - 1.0

1шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 20 mm

1шт.

10

J927611

BRACKET

BRACE - suction tube (Replaces brace J913427)

1шт.

11

J914015

ENGINE OIL PAN

PAN - oil, engine

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

32шт.

13

J910266

LOCK WASHER

WASHER - spring, Belleville

32шт.

14

J908316

WASHER

WASHER - flat, special, 9 x 16 x 1 mm

32шт.

15

J924148

PLUG,M22 x 1.5

PLUG - heater hole, oil (Replaces plug J904386)

1шт.

16

J924147

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic, 18 mm (Replaces plug J911638)

1шт.

17

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

See Figure Note.

1шт.

18

J910960

WASHER

WASHER - flat, special

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - pan, oil, order kit A77679

1шт.

See Figure Note.

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

See Figure Note.

1шт.

21

J918532

PLUNGER

PLUNGER - regulator

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan

1шт.

See Figure Note.

1шт.

A77580

SERVICE KIT

KIT - oil pan heater

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, order kit A77580 OIL PAN

1шт.

23

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113) OIL PAN KIT

1шт.
