(2-78) - FLYWHEEL, 6TA-590 ENGINE

Запчасти Case IH 2022 (2-78) - FLYWHEEL, 6TA-590 ENGINE (01) - ENGINE

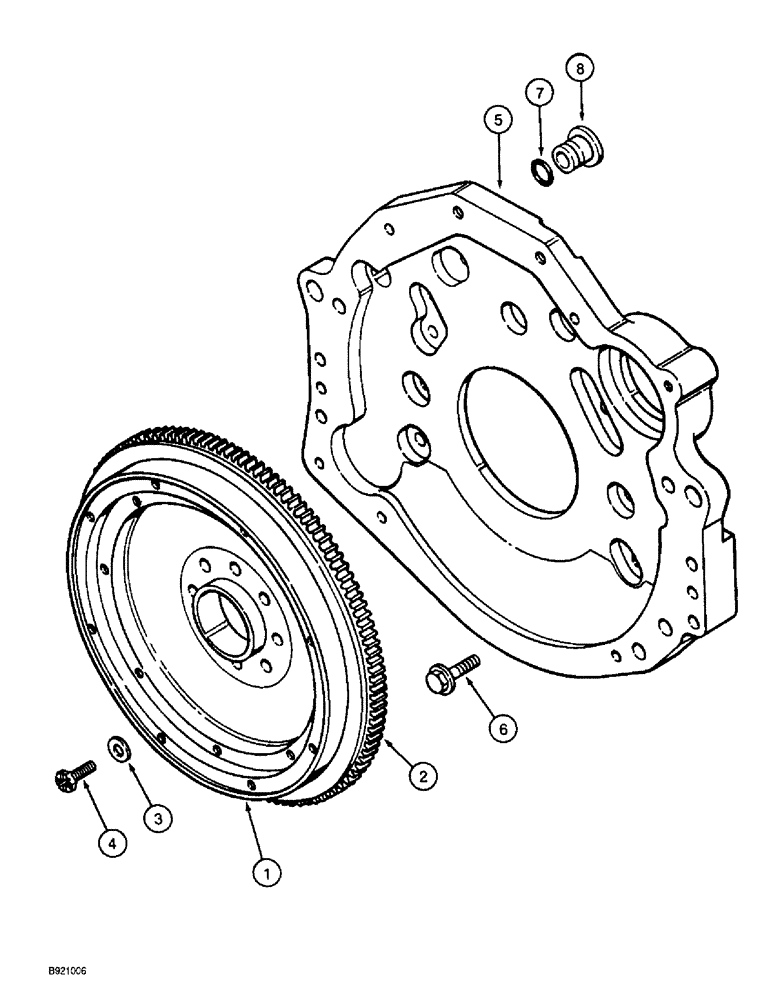

Схема запчастей Case IH 2022 - (2-78) - FLYWHEEL, 6TA-590 ENGINE (01) - ENGINE
2
4
7
8
5
6
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J914433

FLYWHEEL

ASSEMBLY - engine

1шт.

2

J905427

GEAR

- ring, flywheel

1шт.

3

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special

8шт.

4

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

5

J913592

PLATE

- backing

1шт.

6

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J910248

PLUG

- flywheel housing

1шт.
