(9A-80) - DRUM HOUSING, 2044 COTTON PICKER

Запчасти Case IH 2044 (9A-80) - DRUM HOUSING, 2044 COTTON PICKER (13) - PICKING SYSTEM

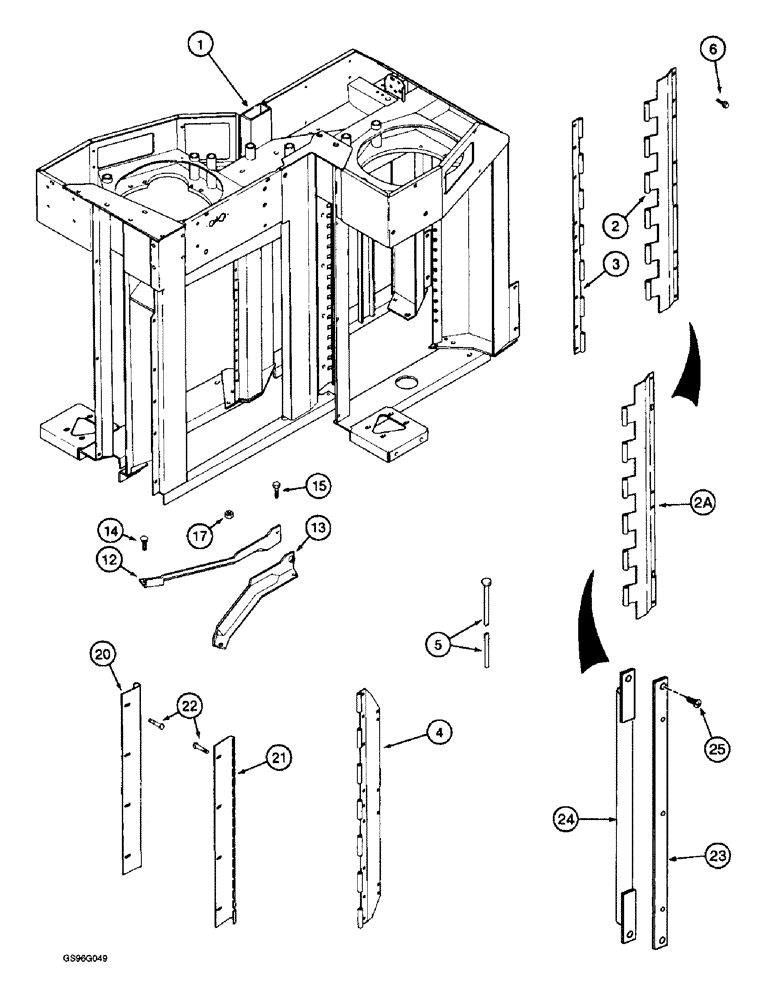

Схема запчастей Case IH 2044 - (9A-80) - DRUM HOUSING, 2044 COTTON PICKER (13) - PICKING SYSTEM
17
13
21
6
25
2a
5
2
20
23
4
24
12
15
22
14
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

HOUSING - drum frame, No. 1 and 3 drum, order service kit 1990419C2

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - drum frame, No. 2 and 4 drum, order service kit 1990418C2

2шт.

2

1982598C1

HINGE

POST - doffer, no longer used, order post 1982598C3, item 2A, or items 23 - 25 below

8шт.

2a

1982598C3

HINGE

POST - doffer, if used (Replaces post 1982598C2)

8шт.

3

1982599C1

HINGE

- doffer post, used with post 1982598C3, item 2A

8шт.

4

1982539C1

HINGE

- doffer post and wheel shield

2шт.

5

1982600C1

PIN,7.94mm OD x 962mm L

- post hinge

8шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

16шт.

12

1990342C2

ANGLE BAR

ANGLE - wear, left-hand (Replaces angle 1990342C1)

4шт.

13

1990343C2

ANGLE BAR

ANGLE - wear, right-hand (Replaces angle 1990343C1)

4шт.

14

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

8шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

16шт.

15

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

6шт.

17

425-106

NUT,3/8"-16, Cl 5

24шт.

20

1988970C2

PLATE

- vine knife, left-hand

1шт.

21

1990345C1

PLATE

- vine knife, right-hand

1шт.

22

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

23

228914A1

LARGE PLATE

PLATE - outlet support adapter, if used

1шт.

24

228947A2

TUBE

PIPE - drum support, if used

1шт.

25

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat Phillips, 3/8 NC x 3/4", if used

4шт.

1984131C1

DRUM

- cotton picker, No. 1 drum (Replaces drum 1984141C1) ASSEMBLY

1шт.

1984132C1

DRUM

- cotton picker, No. 2 drum (Replaces drum 1984142C1) ASSEMBLY

1шт.

1984133C1

DRUM

- cotton picker, No. 3 drum (Replaces drum 1984143C1) ASSEMBLY

1шт.

1984134C1

DRUM

- cotton picker, No. 4 drum (Replaces drum 1984144C1) ASSEMBLY

1шт.
