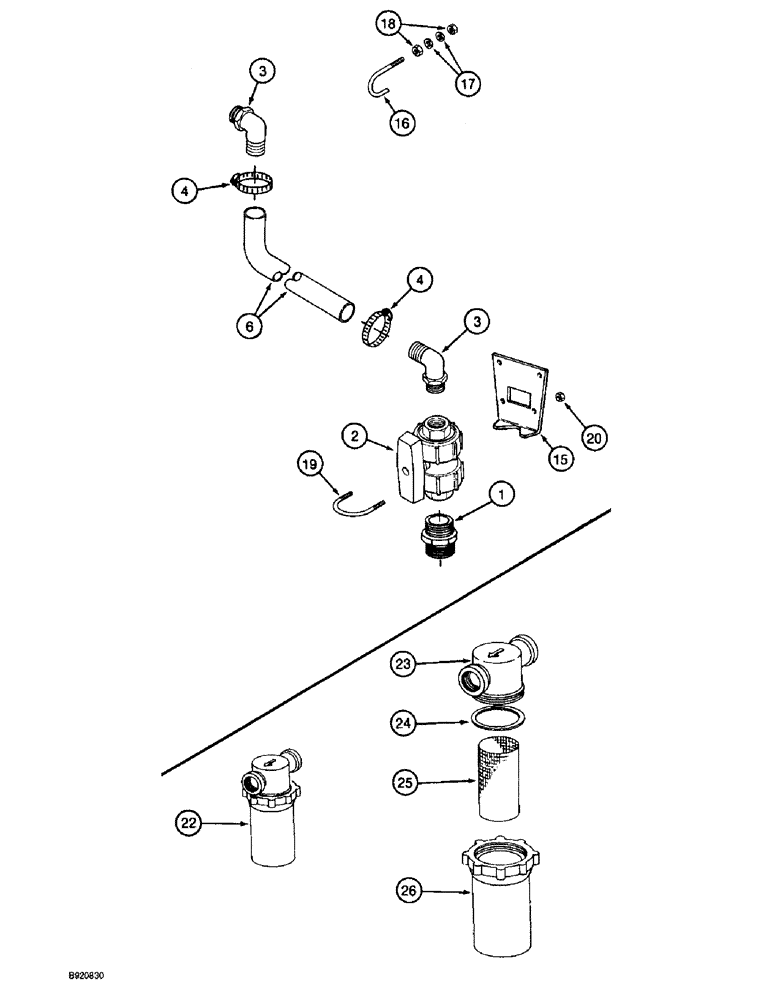

Запчасти Case IH 2044 (9B-18) - QUICK FILL ATTACHMENT, 2044 COTTON PICKER (14) - WATER SYSTEM

1

1264070C1

FITTING

NIPPLE - straight, special, 1-1/4 x 1-1/4 inch

1шт.

2

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff

1шт.

3

1345169C1

FITTING

ELBOW - 90 degree, 1-1/4 PT x 1-1/2 inch stem

2шт.

4

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

6

NSS

NOT SOLD SEPARAT

HOSE - water, 33 inch (838 mm) long, cut from bulk hose 87704C2 below

1шт.

15

1345168C1

SUPPORT

BRACKET - water valve support

1шт.

16

1345188C1

BOLT,J, 3/8" - 16 x 57mm W x 73mm L

BOLT - J, water hose support

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

1979995C1

U-BOLT,5/16" - 18 x 3 3/4"

- 5/16 inch NC

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

87704C2

HOSE,1.50" ID

- bulk, 78 inch (1980 mm) long

1шт.

22

87006C92

FILTER

ASSEMBLY - water

1шт.

23

NSS

NOT SOLD SEPARAT

BASE - water filter, order filter assembly 87006C92

1шт.

24

87225C1

GASKET

- line strainer WATER FILTER

1шт.

25

87260C1

FILTER SCREEN

SCREEN - filter WATER FILTER

1шт.

26

NSS

NOT SOLD SEPARAT

BOWL - water filter, order filter assembly 87006C92

1шт.
