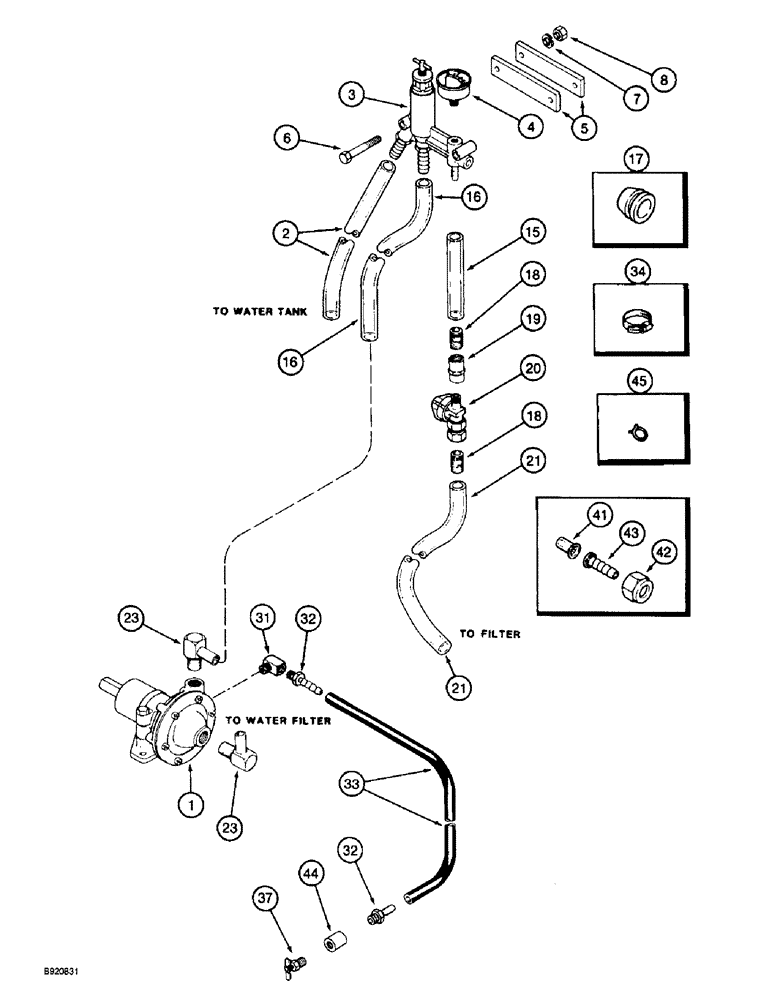

Запчасти Case IH 2044 (9B-20) - WATER VALVE SYSTEM (14) - WATER SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - water, parts list page 9B-23

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 2044 Cotton Picker, 112 inch (2845 mm) long, cut from bulk hose 665181R1 below

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 2022 Cotton Picker, 100 inch (2540 mm) long, cut from bulk hose 665181R1 below

1шт.

3

87202C1

SHUT-OFF VALVE

VALVE - water regulator

1шт.

4

87203C1

GAUGE

- water pressure

1шт.

5

87210C1

LARGE PLATE

BAR - spacer valve

2шт.

6

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

15

NSS

NOT SOLD SEPARAT

HOSE - 12 inch (305 mm) long, cut from bulk hose 1982352CX below

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water pump to regulator valve, 130 inch (3302 mm) long, cut from bulk hose 665181C1 below

1шт.

17

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

3шт.

18

1338695C1

FITTING

- stem, 1/4 inch

1шт.

19

217-96

COUPLING,1/4"-18, Brass

- pipe, 1/4 inch

1шт.

20

1339011C1

CHECK VALVE

VALVE - check, 10 psi

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - regulator valve to water line tee, 160 inch (4064 mm) long, cut from bulk hose 1338159CX below

1шт.

23

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

(Elbow) (Replaces elbow 57864R1) 90º, 1/2" Hose x 3/8" NPTF, Barbed

2шт.

31

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street (Replaces elbow 9409931) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

32

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

ADAPTER - straight, 3/8 barb end x 1/8 inch PT

2шт.

33

NSS

NOT SOLD SEPARAT

HOSE - water drain, 33 inch (838 mm) long, cut from bulk hose 1338159CX below

1шт.

34

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

12шт.

37

217-81

VALVE

- drain, 1/8 inch PT

1шт.

41

1339108C1

VALVE POPPET

VALVE - check

1шт.

42

1339129C1

NUT

CAP - nozzle

1шт.

43

1339130C1

FITTING

- stem, straight, special

1шт.

44

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch (Replaces coupling 187394)

1шт.

45

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - spring type, 3/4 inch

8шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.

1338159CX

HOSE

- bulk, 3/8 (10) ID x 1200 inch (30480 mm) long

1шт.

1982352CX

HOSE,6.35mm ID x 30480mm L, SAE 30R7

Bulk, Sold by the foot 6.50 mm ID x 30480.00 mm

1шт.
