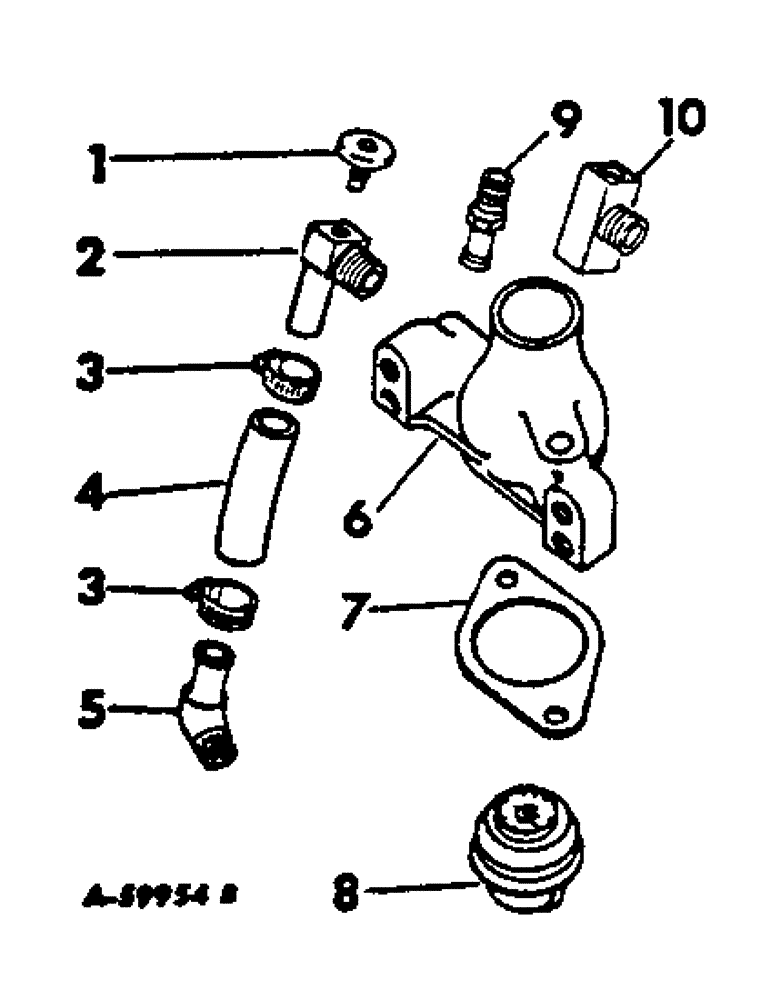

Запчасти Case IH 414 (363) - THERMOSTAT, THERMOSTAT HOUSING, WATER PUMP BY-PASS VALVE AND CONNECTIONS (10) - ENGINE

1

538V

STEM, water pump by-pass valve

1шт.

2

320275R1

ELBOW UNION

VALVE ASSY, water pump by-pass valve, will work for 303483R11

1шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, water pump by-pass hose

2шт.

4

278807R1

TUBE

HOSE, water pump by-pass

1шт.

5

278089R1

FITTING

ELBOW, water pump by-pass hose, 45 deg

1шт.

6

278279R2

HOUSING

thermostat

1шт.

444630

PLUG,Hex Hd, 1/2"-14

1/2 NPT pipe

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

278280R1

GASKET

thermostat housing

1шт.

8

313942R91

THERMOSTAT

W/SEAL, 170 deg, 190 deg

1шт.

262882R1

GASKET

THERMOSTAT SEAL

1шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

NOT USED IN THIS APPLICATION

1шт.
