(094) - HYDRAULIC DRUM CONTROL ATTACHMENT, HYDRAULIC OIL FLOW EQUALIZER

Запчасти Case IH 414 (094) - HYDRAULIC DRUM CONTROL ATTACHMENT, HYDRAULIC OIL FLOW EQUALIZER (35) - HYDRAULIC SYSTEMS

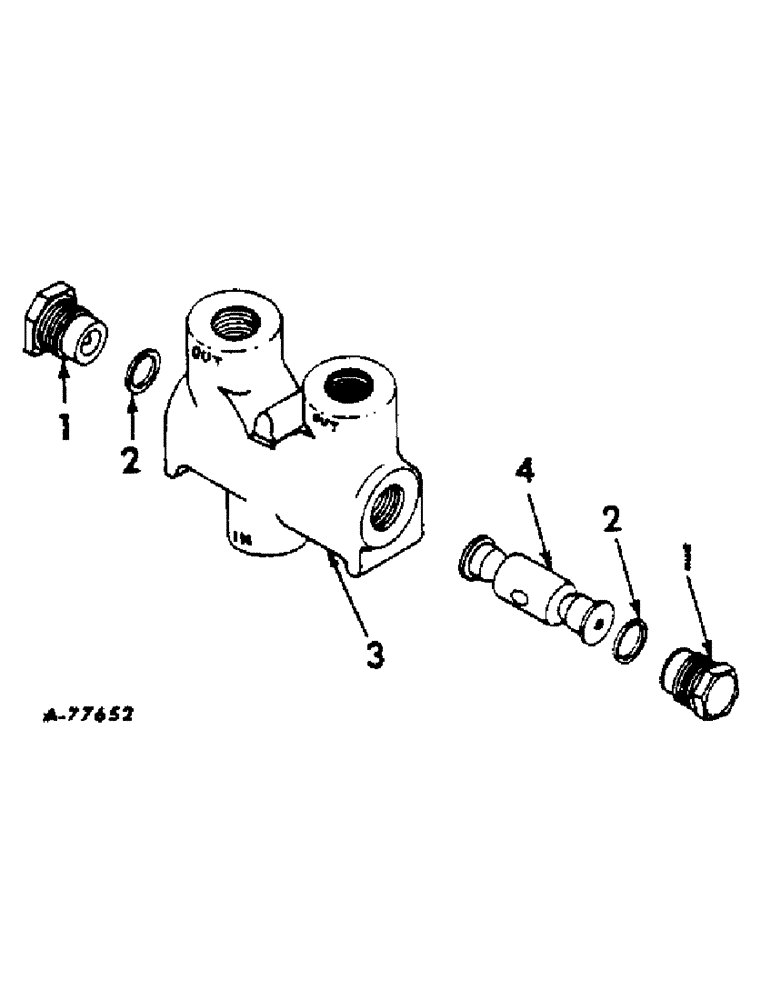

Схема запчастей Case IH 414 - (094) - HYDRAULIC DRUM CONTROL ATTACHMENT, HYDRAULIC OIL FLOW EQUALIZER (35) - HYDRAULIC SYSTEMS
2
1
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

669074R91

EQUALIZER ASSY, hydraulic oil flow (Consists of all parts listed below)

1шт.

1

669551R1

CAP, end

2шт.

2

669588R1

O-RING

spool

2шт.

3

669549R1

HOUSING, flow equalizer

1шт.

4

669550R1

SPOOL, equalizer

1шт.
