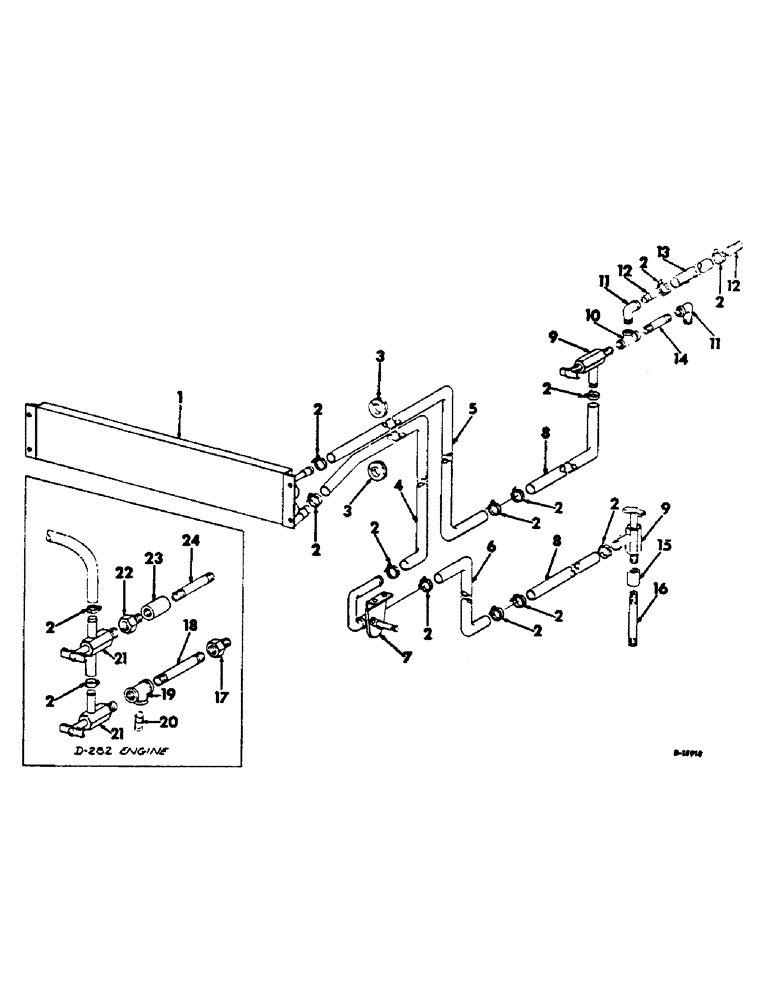

Запчасти Case IH 414 (217) - CAB HEATER ATTACHMENT (50) - CAB CLIMATE CONTROL

1

204250C1

CORE, heater

1шт.

SCREW W/NUT, 1/4 x 1/2 cap

6шт.

WASHER, 1/4 lock

6шт.

2

995218R1

CLAMP

hose

10шт.

3

112745

GROMMET,7/8" ID x 1 1/4" Groove Dia

rubber

2шт.

4

HOSE, heater core to valve, Use 101 inches of 5/8 I.D. heater hose from 50-foot roll marked, 364359C1

1шт.

5

HOSE, heater core to long nipple on cab rear wall, Use 130-inches of 5/8 I.D. heater hose from 50-foot roll marked, 364359C1

1шт.

6

HOSE, valve to nipple on rear wall, Use 27 inches of 5/8 I.D. heater hose from 50-foot roll marked, 364359C1

1шт.

7

204251C1

VALVE ASSY, heater

1шт.

8

HOSE, cab rear wall to engine, Use 154-inches of 5/8 I.D. heater hose from a 50 ft roll marked, 364359C1

2шт.

9

301803R91

VALVE

ASSY, water shut-off, gasoline engine

2шт.

10

120280

TEE,3/8" NPT, Fem

3/8 pipe, gasoline engine

1шт.

11

120063

BOLT,Hex, M8 x 80, 8.8

3/8 90 deg street, gasoline engine

2шт.

12

SEE REF NO. 4 UNDER GASOLINE ENGINE SECTION HEADING, housing and thermostat

1шт.

13

HOSE, heater return, Use 5-1/2 in. of 5/8 ID heater hose from a 50 ft roll marked, 364359C1

1шт.

14

221-1166

NIPPLE, LUBE

NIPPLE, 3/8 x 3 pipe, gasoline engine

1шт.

15

120755

COUPLING,3/8" NPT

3/8 pipe, gasoline engine

1шт.

16

190699

PIPE,Nipple, 3/8" NPT x 6"

NIPPLE, 3/8 x 6 pipe, gasoline engine

1шт.

17

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe, diesel engine

1шт.

18

509962

HYD CONNECTOR

NIPPLE, 3/8 x 2 pipe, diesel engine

1шт.

19

120280

TEE,3/8" NPT, Fem

3/8 pipe, diesel engine

1шт.

20

169193R1

PIPE

NIPPLE, 3/8 special pipe, diesel engine

1шт.

21

301803R91

VALVE

ASSY, water shut-off, diesel engine

2шт.

22

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING, 3/4 x 3/8 reducing pipe, diesel engine

1шт.

23

111661

COUPLING,3/4" NPT

3/4 pipe, diesel engine

1шт.

24

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pipe, diesel engine

1шт.
