(048[1]) - FAN DRIVE SHAFT, ROCKWELL STANDARD

Запчасти Case IH 414 (048[1]) - FAN DRIVE SHAFT, ROCKWELL STANDARD (74) - CLEANING

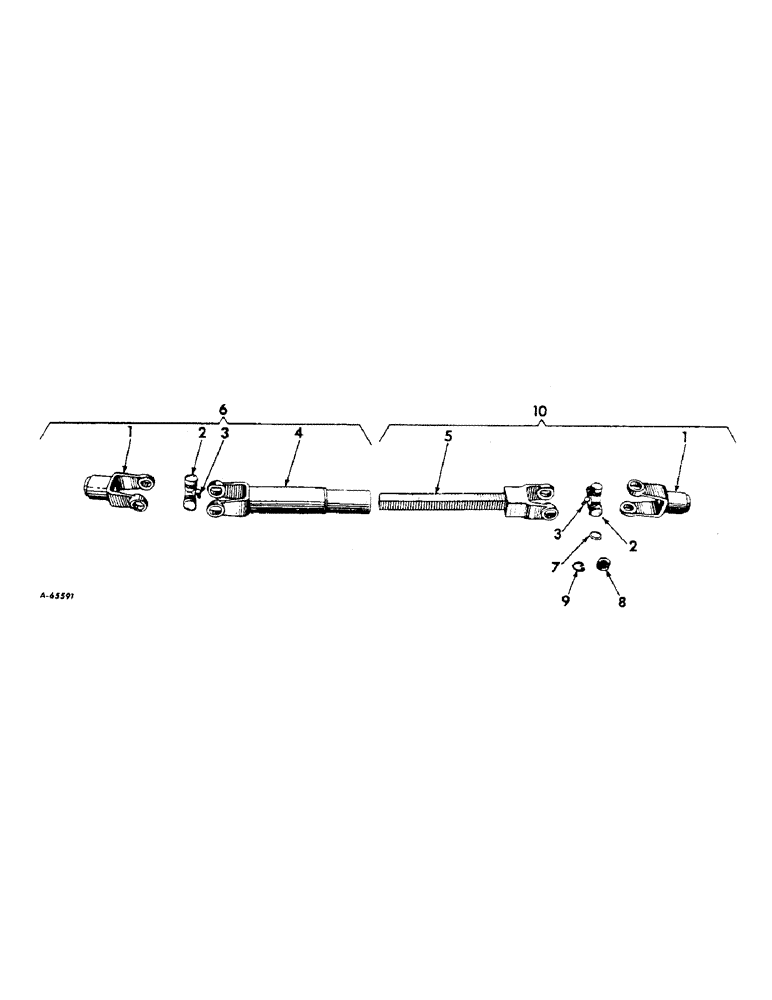

Схема запчастей Case IH 414 - (048[1]) - FAN DRIVE SHAFT, ROCKWELL STANDARD (74) - CLEANING
7
9
10
2
3
2
5
4
3
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

666691R1

YOKE

2шт.

3/8" NUT

2шт.

102457

3/8 X 1-1/4" SQ-HD OV-PT SET SCREW

2шт.

2

660116R91

NUT

KIT, cross service

2шт.

3

271284

YOKE

1/8" 67-1/2 degree elbow lubrication

2шт.

4

666750R91

YOKE W/SLEEVE (Welded assembly)

1шт.

5

666751R91

YOKE W/SHAFT (Welded assembly)

1шт.

6

666690R91

TUBE W/YOKE ASSEMBLY, front half 2.125" Diameter, 30.25" Length

1шт.

7

661714R1

WASHER, cork

8шт.

8

661671R91

JOINT

CUP ASSEMBLY, needle

8шт.

9

495962R1

RING

SNAP RING

8шт.

10

666689R91

SHAFT W/YOKE ASSEMBLY, rear half

1шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4" 28NF lubrication (In yoke and sleeve)

1шт.
