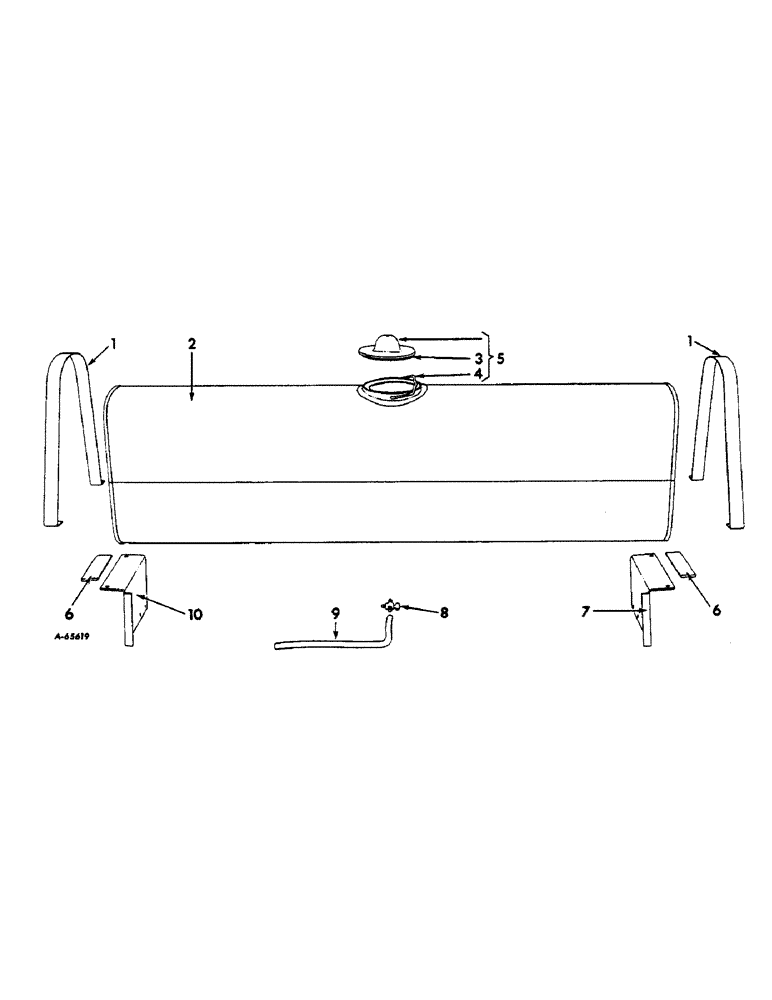

Запчасти Case IH 414 (071[1]) - WATER TANK (80) - CROP STORAGE/UNLOADING

1

665982R1

STRAP, water tank

2шт.

3/8 X 3/4" CD-PLTD CRG BOLT W/NUT

2шт.

3/8 X 2" CD-PLTD MACH BOLT W/NUT

2шт.

3/8" CD-PLTD LOCK WASHER

4шт.

2

666211R91

TANK, water

1шт.

3

661989R1

GASKET

water tank cap

1шт.

4

661987R1

RETAINER

BAIL, water tank cap

1шт.

5

661988R11

CAP

ASSEMBLY, water tank

1шт.

6

LINING, water tank support (Use 9 inches of 1-1/2" webbing from roll marked 990541R1)

2шт.

7

665980R1

SUPPORT, water tank left

1шт.

8

660604R91

VALVE, water tank (414-501E thru 1120G) (420-501E thru 1260G)

1шт.

9

HOSE, tank to valve water (Use 50 inches of 1/2" hose from 50-ft. roll marked 665181R1)

1шт.

10

665981R1

SUPPORT, water tank right

1шт.
