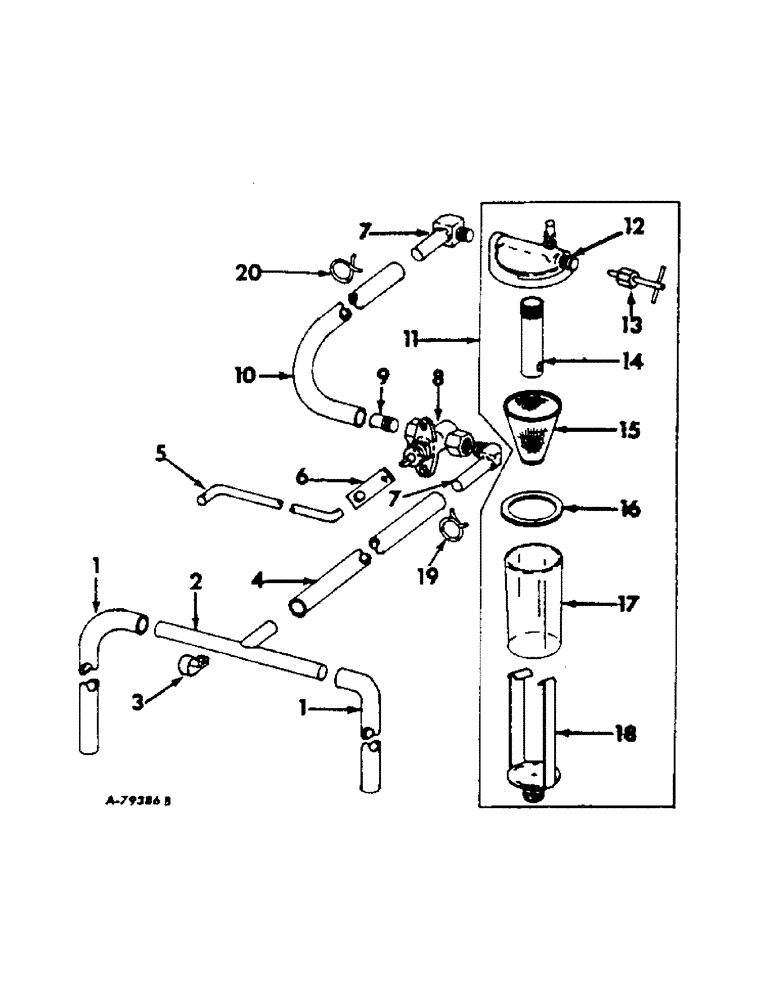

Запчасти Case IH 414 (186) - WATER FILTER AND LINES (80) - CROP STORAGE/UNLOADING

1

HOSE, tee to drum water, Use 23 inches of 9/32 hose for 50 ft roll marked, 665180R1

2шт.

2

665245R91

TEE

water line, welded assy

1шт.

3

27385D

CLIP, water line tee

1шт.

4

HOSE, valve to tee, Use 27 inches of 1/2 hose from 50 ft roll marked, 665181R1

1шт.

5

665985R1

ROD, water shutoff valve

1шт.

PIN, 3/32 x 1/2 cotter

2шт.

WASHER, 9/32 x 5/8 x 16 ga

2шт.

6

665984R1

LEVER, water shutoff valve

1шт.

SCREW, 8-32 x 1/2 rd-hd

1шт.

WASHER, 13/64 x 1/2 x 16 ga

1шт.

22910V

WASHER, 21/64 x 5/8 x 18 ga

1шт.

7

667482R1

ELBOW

water hose connector

2шт.

8

658899R93

VALVE

water shutoff

1шт.

BOLT W/NUT, 1/4 x 3/4 mach

2шт.

WASHER, 1/4 lock

2шт.

9

665253R1

CONNECTOR, water hose

1шт.

10

HOSE, filter to valve, Use 50 inches of 1/2 hose from 50 ft roll marked, 665181R1, 416CH501 thru 779H, 422CH501H thru 1192H

1шт.

10

HOSE, filter to valve, Use 34 inches of 1/2 hose from 50 ft roll marked, 665181R1, 416CH780K up, 422CH1193K up

1шт.

11

370074R91

FILTER

ASSY, water

1шт.

12

NOT SERVICED SEPARATELY, Order 370074R91

1шт.

13

370519R91

STEM

ASSY

1шт.

14

54762D

TUBE

center

1шт.

15

370784R91

FILTER SCREEN

SCREEN ASSY

1шт.

16

370520R1

GASKET

1шт.

17

60877D

BOWL

glass, Replaces 370783R1

1шт.

18

370785R91

CLAMP

BAIL ASSY

1шт.

19

317683R1

HOSE CLAMP,#10, 5/8", Spring

CLAMP, hose, 416CH501H thru 779H, 422CH501H thru 1192H

1шт.

20

313317R1

HOSE CLAMP,#12, 3/4", Spring

CLAMP, hose, 416CH780K up, 422CH1193K up

1шт.
