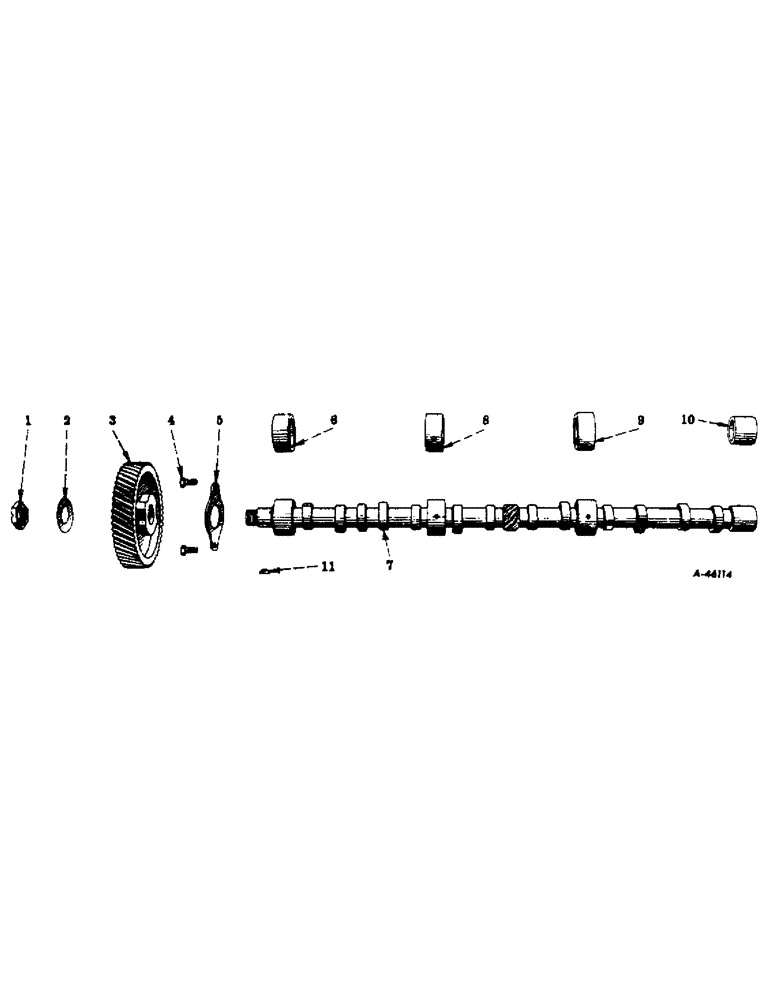

Запчасти Case IH 420 (229) - CAMSHAFT, BUSHINGS AND GEAR (10) - ENGINE

1

16026DB

NUT

camshaft gear

1шт.

2

16025D

SHIM

RETAINER, camshaft gear unit

1шт.

3

69490R1

GEAR, camshaft

1шт.

4

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, thrust flange

2шт.

5

35650HA

FLANGE

thrust

1шт.

6

70259R2

BUSHING

front camshaft

1шт.

7

69681R3

CAMSHAFT

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

intermediate front camshaft

1шт.

9

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

intermediate rear camshaft

1шт.

10

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BUSHING, rear camshaft

1шт.

11

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY, 1/4 x 3/4, no. 91 Woodruff

1шт.

69682R91

GEAR SET, camshaft and crankshaft, Consists of one 69490R1 gear and one 76978R1 gear, Not illustrated

1шт.
