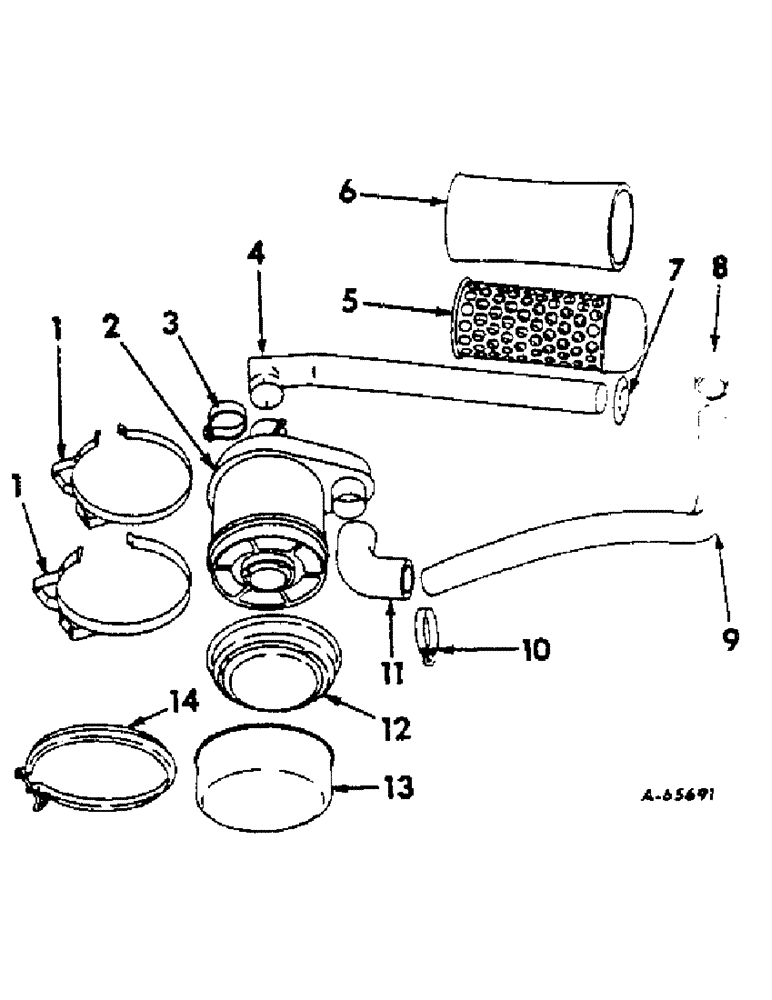

Запчасти Case IH 420 (239) - AIR CLEANER (10) - ENGINE

1

317795R91

BAND, air cleaner mounting

2шт.

NUT, 5/16

4шт.

SCREW, 5/16 x 3/4 cap

4шт.

WASHER, 5/16 lock

4шт.

2

370583R91

CLEANER ASSY, air

1шт.

265331R1

CAP, breather tube

1шт.

3

11280R

CLAMP, precleaner pipe

1шт.

BOLT W/NUT, 5/16 x 1 mach

1шт.

WASHER, 5/16 lock

1шт.

4

666080R91

PIPE, precleaner

1шт.

5

356405R91

PRE-SCREENER

1шт.

6

665528R1

CLEANER

FILTER, precleaner

1шт.

7

665661R1

SEAL, precleaner

1шт.

8

362759R1

HOSE, air intake pipe lower

1шт.

9

666084R2

PIPE, carburetor air intake

1шт.

10

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, hose

4шт.

11

370233R1

INTAKE AIR HOSE,2.25" ID x 4.50", SAE 20R4 CLASS SC

- Pipe elbow upper 2.25" ID x 4.50", SAE 20R4 CLASS SC

1шт.

12

372491R1

CUP

oil inner

1шт.

13

372490R1

BOWL

CUP, oil

1шт.

14

54269DA

CLAMP

ASSY, oil cup retaining

1шт.
