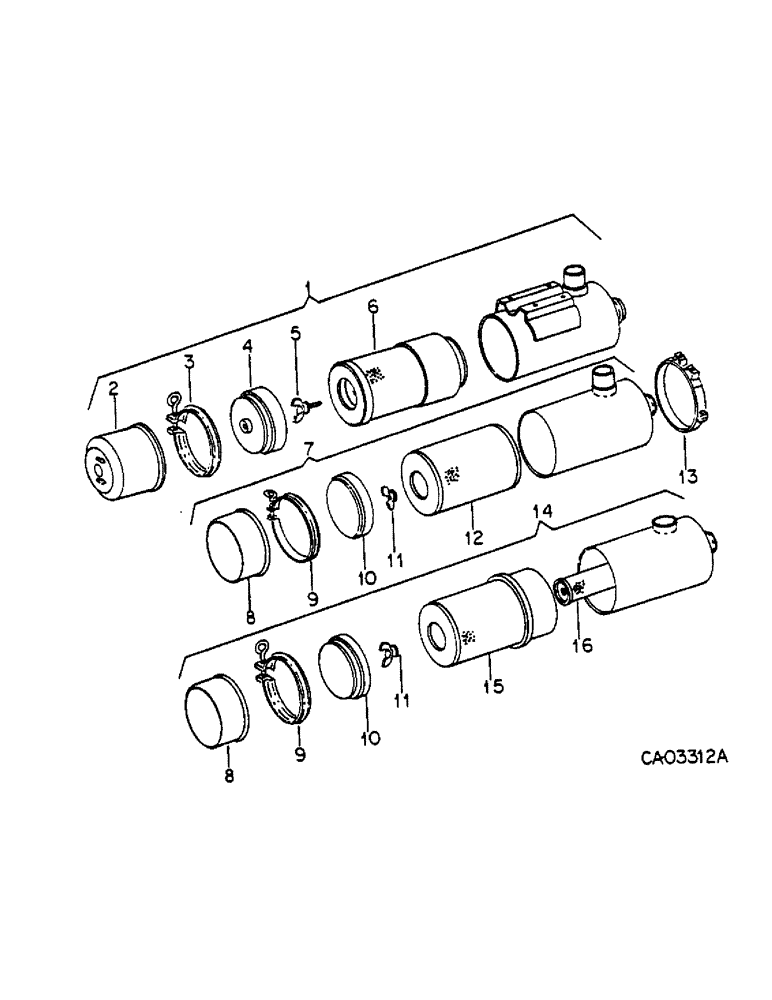

Запчасти Case IH 622 (E-03) - FUEL SYSTEM, AIR CLEANER (02) - FUEL SYSTEM

1

400099R91

ASSY, dry type air, 8 inch, replaces 388025R92, gasoline and LP gas engine cotton pickers w/hydrostatic drive or diesel engine cotton pickers with belt drive

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto. sq-hd pipe

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

389266R91

ASSY

1шт.

3

59860D

CLAMP

ASSY

1шт.

4

389265R1

CUP ASSY.

SKIRT, baffle

1шт.

5

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

ASSY

1шт.

6

389263R92

FILTER, ELEMENT

ASSY

1шт.

7

528420R91

CLEANER

ASSY, dry type air, 9 in. long, order cleaner, 107680C91, diesel engine cotton pickers with hydrostatic drive, 616 CH0001596 and below, 622 CH0004701 and below

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto. sq-hd pipe

1шт.

8

404194R1

COVER

CUP ASSY

1шт.

9

130879HB

CLAMP

ASSY

1шт.

10

404193R1

BAFFLE

SKIRT, baffle

1шт.

11

381342R92

WING NUT

1шт.

12

529373R1

ELEMENT

ASSY

1шт.

13

346667R91

ASSY, air cleaner mounting

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 C-Z hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

NLS

NO LONGER SERVICED

7/16-14 C-Z hex.

4шт.

14

107680C91

CLEANER

ASSY, air, 616 CH0001597 and above, 622 CH0004701 and above

1шт.

15

61122C1

CLEANER

ELEMENT ASSY, primary

1шт.

16

529852R4

FILTER, ELEMENT

ASSY, safety

1шт.
