(J-06[1]) - STEERING BY-PASS LINE

Запчасти Case IH 622 (J-06[1]) - STEERING BY-PASS LINE Steering Mechanism

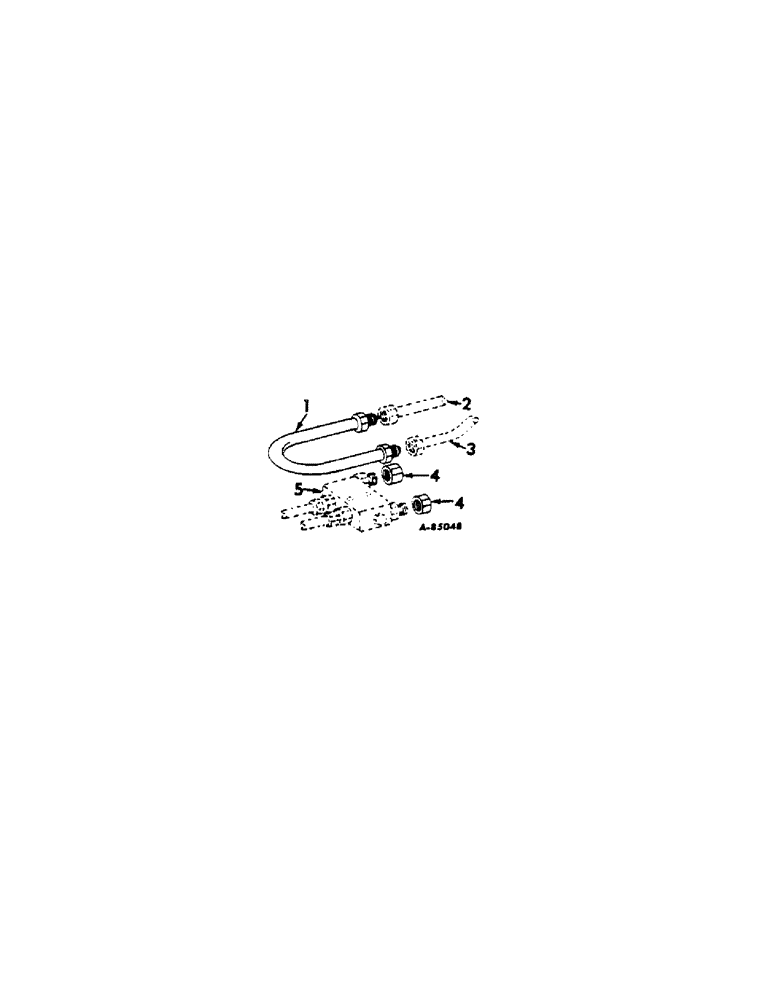

Схема запчастей Case IH 622 - (J-06[1]) - STEERING BY-PASS LINE Steering Mechanism
2
3
4
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

674325R91

STEERING BY-PASS LINE, consists of the following service parts

1шт.

1

610980R91

ASSY HYDROSTATIC STEERING BY-PASS

1шт.

2

TUBE ASSY, bolster to check valve LH, see section J power steering

1шт.

3

TUBE ASSY, bolster to check valve RH, see section J power steering

1шт.

4

9403371

CAP,37 Degree, 9/16"-18

9/16-18 37 deg hyd flared tube

2шт.

5

STEERING DOUBLE CHECK VALVE ASSY, for components see list of parts uner power steering double check valve assy, this section

1шт.
