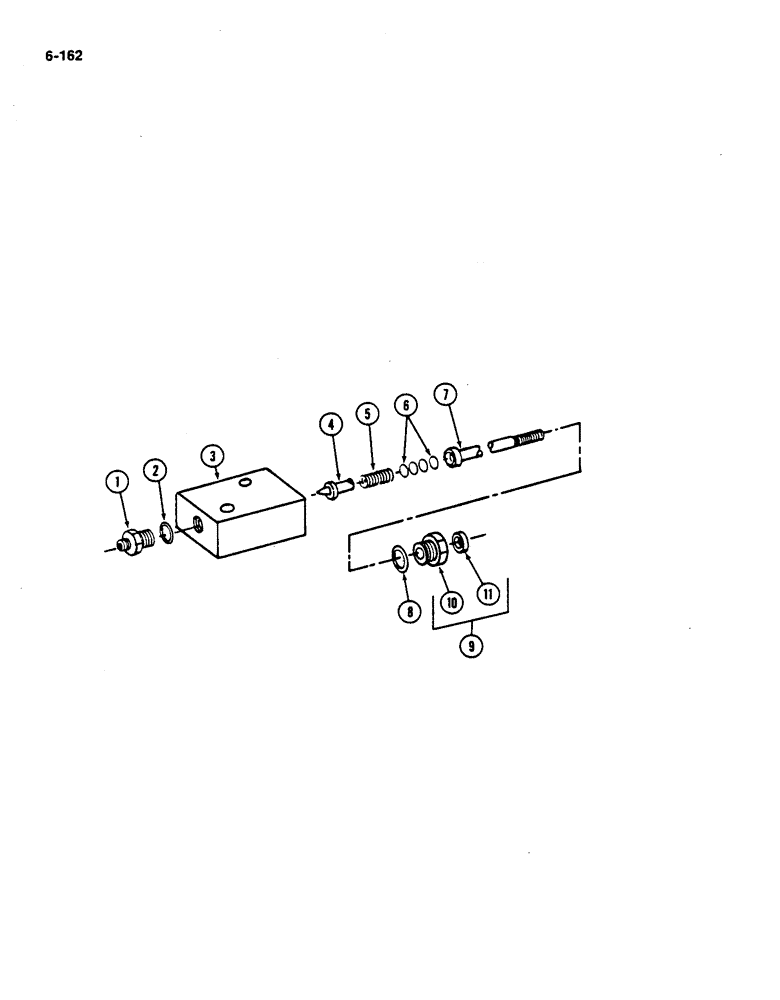

Запчасти Case IH 782 (6-162) - FOOT-N-INCH VALVE (03) - POWER TRAIN

403347R91

LOCK VALVE

VALVE ASSEMBLY - foot-n-inch

1шт.

1

398709R1

SEAT

- poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

NSS

NOT SOLD SEPARAT

BODY (Order valve assembly)

1шт.

4

398710R1

VALVE POPPET

VALVE - poppet

1шт.

5

403434R1

SPRING

- valve

1шт.

6

530575R91

SHIM KIT

KIT - relief valve shim

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

1шт.

7

398708R1

STOP

- valve

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- .755 ID x .097 inch width

1шт.

9

398707R11

GUIDE

ASSEMBLY - valve spring stop

1шт.

10

NSS

NOT SOLD SEPARAT

GUIDE

1шт.

11

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

- oil

1шт.
