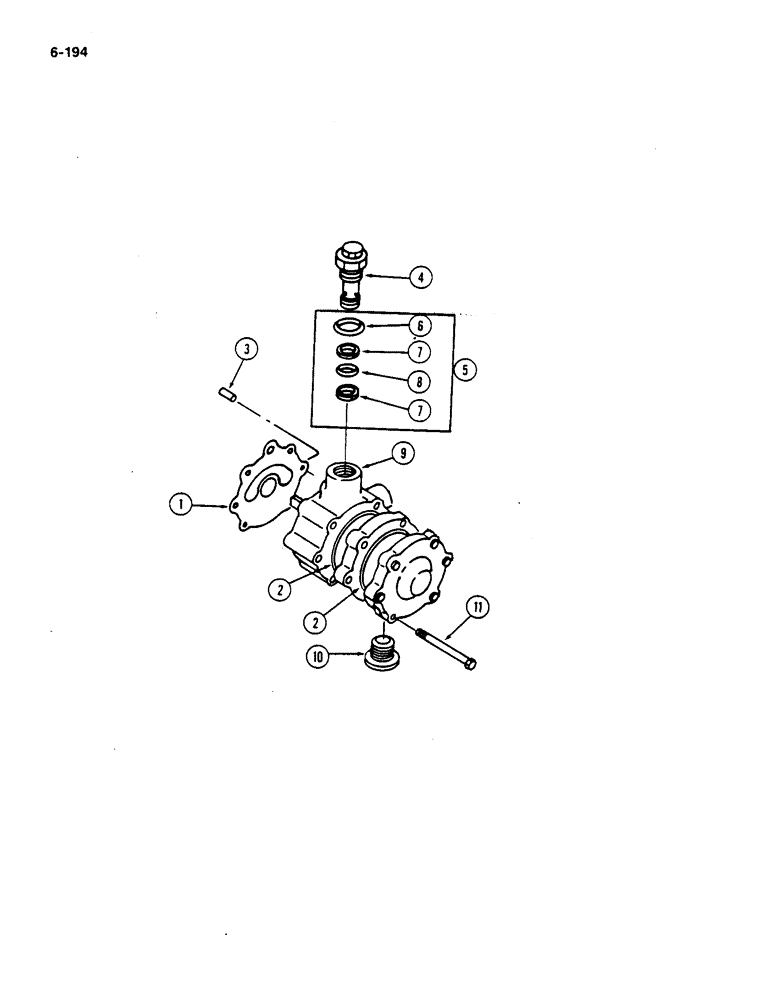

Запчасти Case IH 782 (6-194) - HYDROSTATIC PUMP, CHARGE PUMP (03) - POWER TRAIN

133761C91

PUMP

ASSEMBLY - change

1шт.

1

133760C1

GASKET

- charge pump

1шт.

2

24496R1

O-RING,-041, 70 Duro, 2.989" ID x .070" Thk

- spacer, 3 x 3-1/8 x 1/16 inch (76 x 79 x 2 mm)

2шт.

3

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

4

140771C1

VALVE

- relief, low pressure

1шт.

5

393885R91

GASKET KIT

SEAL KIT - relief valve

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-7/32 x 7/64 inch (27 x 31 x 3 mm)

1шт.

7

393887R1

BACK-UP RING

RING - backup

2шт.

8

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 x 1 x 3/32 inch (21 x 25 x 2 mm)

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump (Order 133761C91)

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - pump (Order 133761C91)

1шт.

11

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

4шт.
