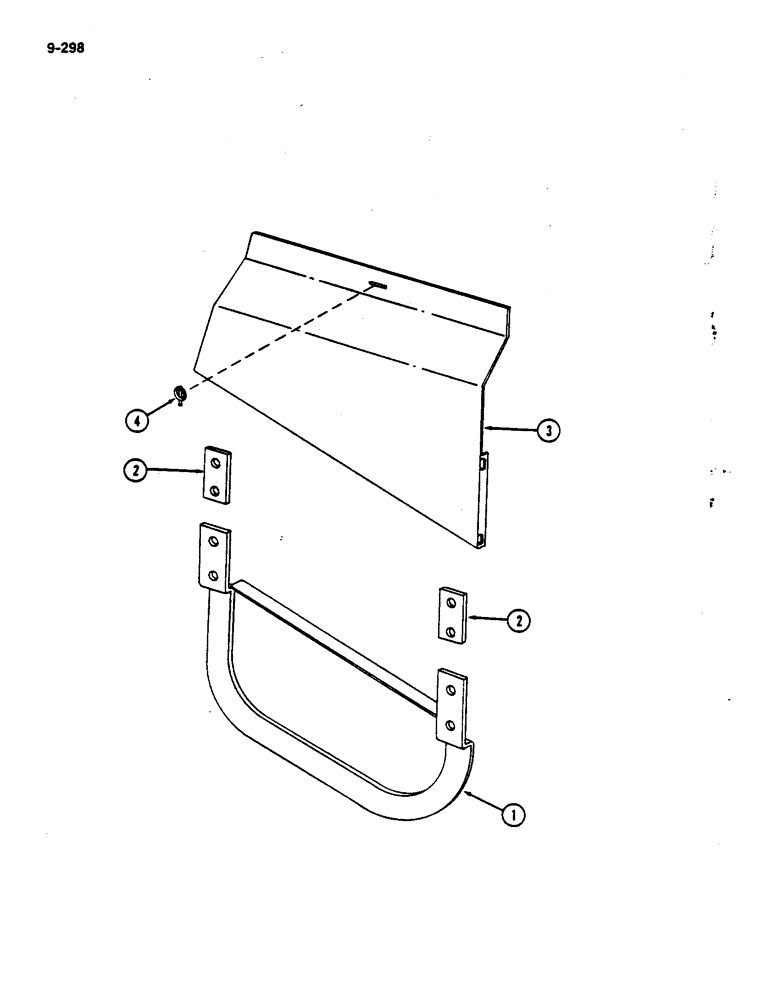

Запчасти Case IH 782 (9-298) - TIRE AND MUD SHIELDS (09) - CHASSIS ATTACHMENTS

1

216182C1

ASSEMBLY

SECTION - right

1шт.

1

216190C1

SECTION - left

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

215520C1

BAR

- mud blade

4шт.

3

216011C1

SHIELD

- left mud

1шт.

3

216012C1

SHIELD

- right mud

1шт.

4

479696R91

AXLE PIN

PIN - klik

2шт.
