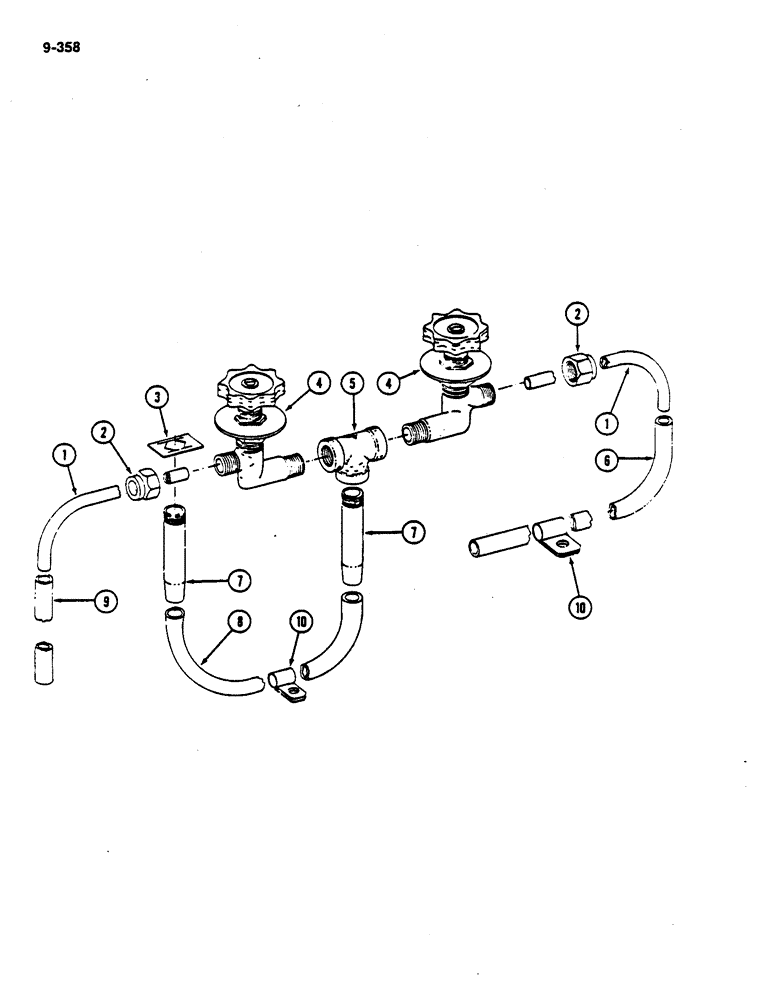

Запчасти Case IH 782 (9-358) - WATER LINES IN DRUM (09) - CHASSIS ATTACHMENTS

1

660693R1

PIPE

- water metering, Serial Range: valve-moistener

4шт.

2

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16 inch ball sleeve

4шт.

3

660698R1

NUT

NUY - water pipe connector

4шт.

4

659204R91

VALVE

- water metering

4шт.

138526

LOCK WASHER

- lock, No. 6

4шт.

5

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, 1/8 inch

2шт.

6

HOSE - connector to stand front, 45 inch (1143 mm) (Cut from 87769C1, 50 foot roll) (15 m)

1шт.

87769C1

FLEXIBLE HOSE

HOSE - 9/32 inch ID, 50 foot (15 m) roll

1шт.

7

655597R1

NIPPLE, LUBE

NIPPLE - pipe

8шт.

8

HOSE - nipple to connector, 45 inch (1143 mm) (Cut from 87769C1, 50 foot roll) (15 m)

1шт.

9

HOSE - connector to stand rear, 18 inch (457 mm) (Cut from 87769C1, 50 foot roll) (15 m)

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - No. 8 hose (Replaces 140582)

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

2шт.
