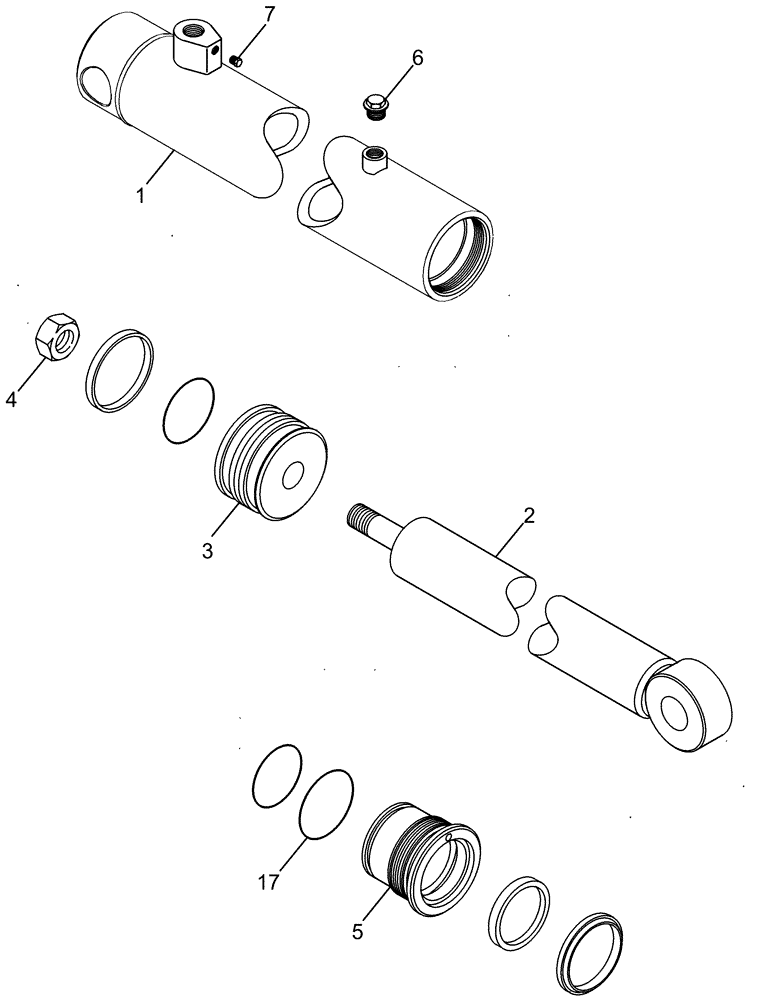

Запчасти Case IH CPX420 (08-43) - BASKET DOOR CYLINDER - ASN Y6T011031 (07) - HYDRAULICS

87272674

CYLINDER,Double Acting, 38.1mm Rod, 892.1mm Stroke

Basket Door, Inc. 1 - 21

2шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

NSS

NOT SOLD SEPARAT

Rod

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Lock Nut

1шт.

5

NSS

NOT SOLD SEPARAT

Head

1шт.

6

NSS

NOT SOLD SEPARAT

Plug

2шт.

7

87413032

FITTING

Bleeder

2шт.

8

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Unloaded Rod Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Canned Wiper

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

87384990

SEAL KIT

Kit

1шт.
