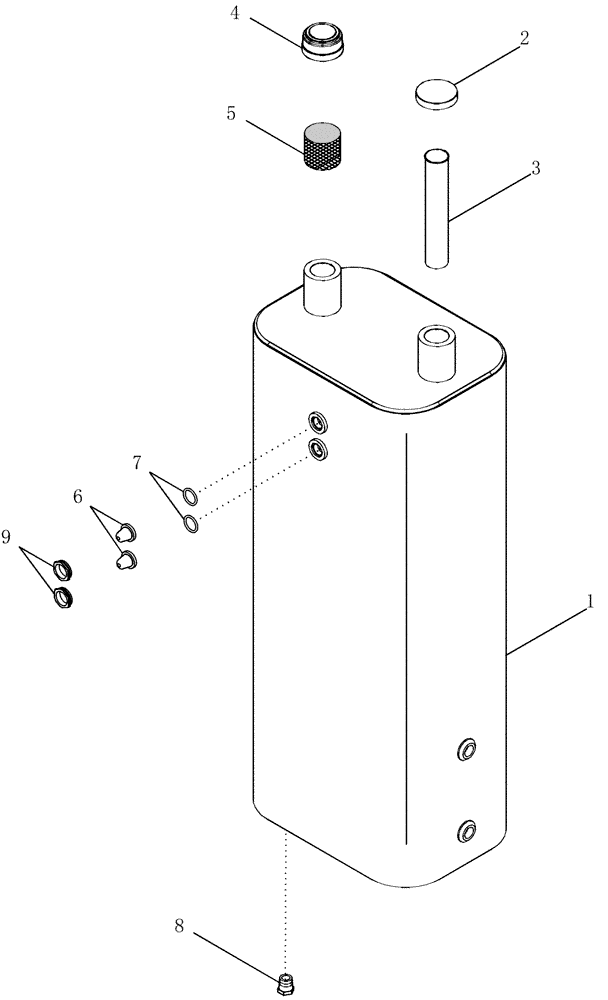

Запчасти Case IH CPX610 (08-02) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

292974A1

TANK, HYDRAULIC OIL

76 Liters (20 gal), Inc. 1 - 8, Serial Range: -JJC0250200

1шт.

86991461

TANK, HYDRAULIC OIL

76 Liters (20 gal), Inc. 1 - 9, Start Serial: JJC0250200

1шт.

1

NSS

NOT SOLD SEPARAT

TANK

1шт.

2

1346309C2

FILLER CAP

Nonvented

1шт.

3

104407A1

SCREEN

Filter

1шт.

4

1272941C2

BREATHER

1шт.

5

191116A1

BAFFLE

Reservoir Breather

1шт.

6

132865A1

SIGHTGLASS

Inc. 7, Serial Range: -JJC0250200

2шт.

6

86990536

LENS

, Start Serial: JJC0250200

2шт.

7

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

, Serial Range: -JJC0250200

2шт.

7

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/32 ID x 1/16, Start Serial: JJC0250200

2шт.

8

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

Drain

1шт.

9

86990537

NUT,15/16"

Lens Retainer, Start Serial: JJC0250200

2шт.
