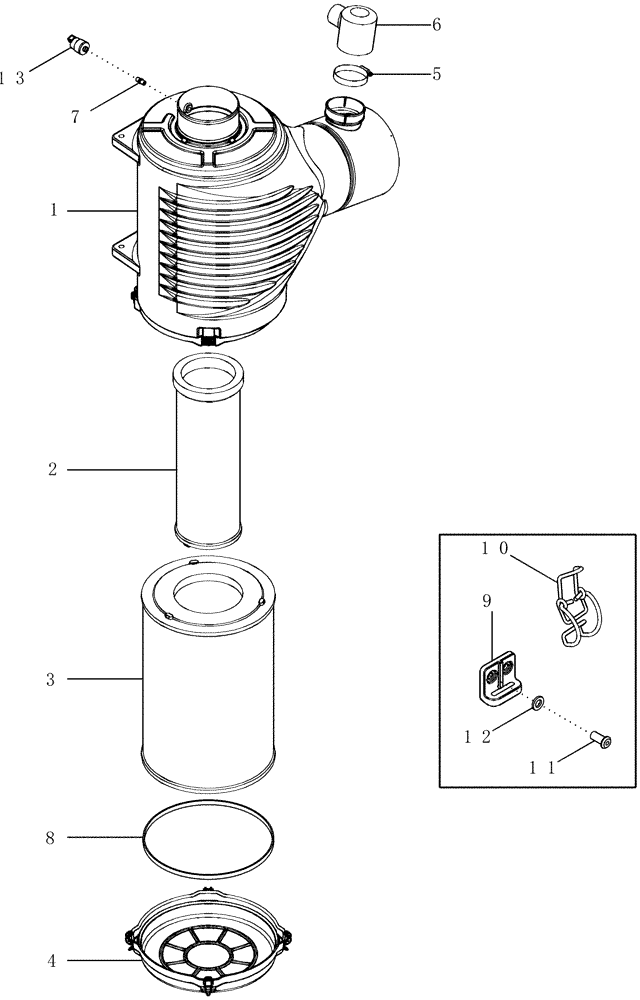

Запчасти Case IH CPX610 (02-04A) - AIR CLEANER ASSEMBLY - ASN JJC0250200 (01) - ENGINE

87414955

AIR CLEANER

Inc. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

86998332

AIR FILTER,Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc

Safety

1шт.

3

86998333

AIR FILTER,Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc

Primary

1шт.

4

87414956

FILTER COVER

End, Inc. 8 - 12

1шт.

5

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

1шт.

6

249788A1

VALVE

1шт.

7

D36264

FITTING

1шт.

8

87414805

GASKET,336.8mm ID x 347.4mm OD x 11mm Thk

1шт.

371266A1

LATCH

Includes 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

CATCH

1шт.

10

NSS

NOT SOLD SEPARAT

LATCH ASSY

1шт.

11

NSS

NOT SOLD SEPARAT

RIVET

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER

2шт.

13

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.
