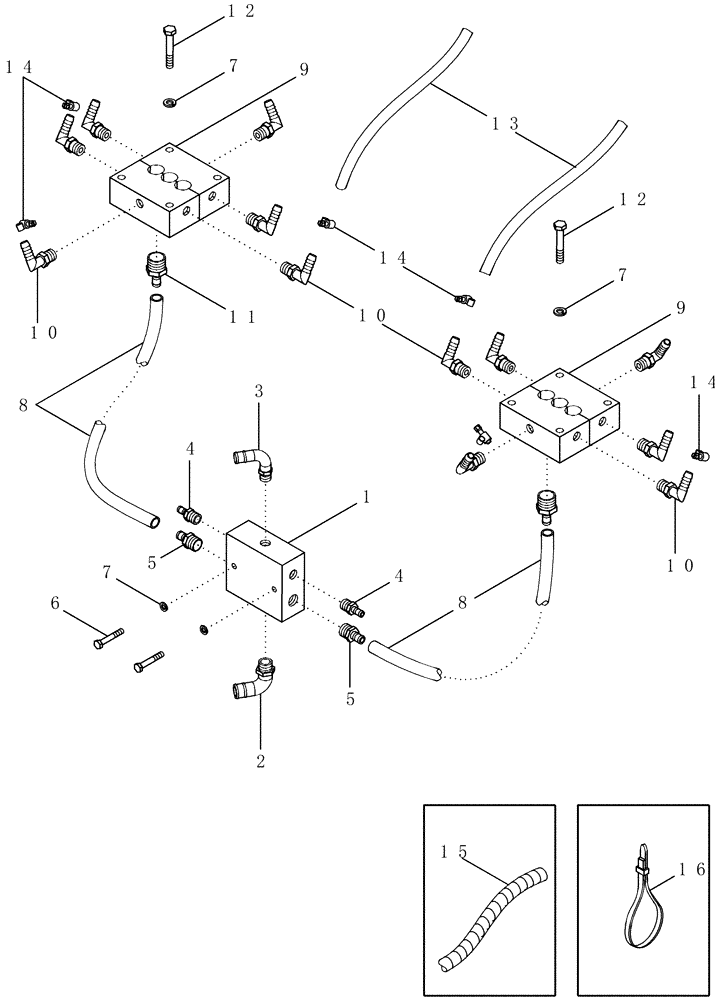

Запчасти Case IH CPX610 (09A-38A) - DRUM BAR LUBRICATION SYSTEM - MANIFOLDS AND HOSES- BSN JJC0250200 (13) - PICKING SYSTEM

1

426601A1

BLOCK

Manifold, Plastic

1шт.

2

426780A1

FITTING,1/2" Male Thread x 3/4" 90 Degree Hose Barb

2 Male x 3/4 hose shank

1шт.

3

426777A1

FITTING,3/8" Male Thread x 3/8" 90 Degree Hose Barb

3/8 Male x 3/8 barb

1шт.

4

426778A1

PIPE FITTING,3/8" Male Thread x 3/8" Hose Barb

3/8 Male x 3/8 hose shank

2шт.

5

426779A1

PIPE FITTING,1/2"Male Thread x 1/2"Hose Barb

1/2 Male x 1/2 hose shank

2шт.

6

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

7

892-11008

LOCK WASHER,8mm ID

2шт.

8

426127A1

HOSE

2337 mm (92 in), Cut From 426950A1

2шт.

9

302769A1

BLOCK

Manifold, Bar Lube, Moistener System

4шт.

10

1546018C1

ELBOW

1/4 PT x 3/8 stem

12шт.

12

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

10шт.

13

427377A1

HOSE,9.52 mm ID x 3048.00 mm

Cut From 122467A1

6шт.

15

427379A1

CONDUIT

2337 mm (92 in)

6шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.
