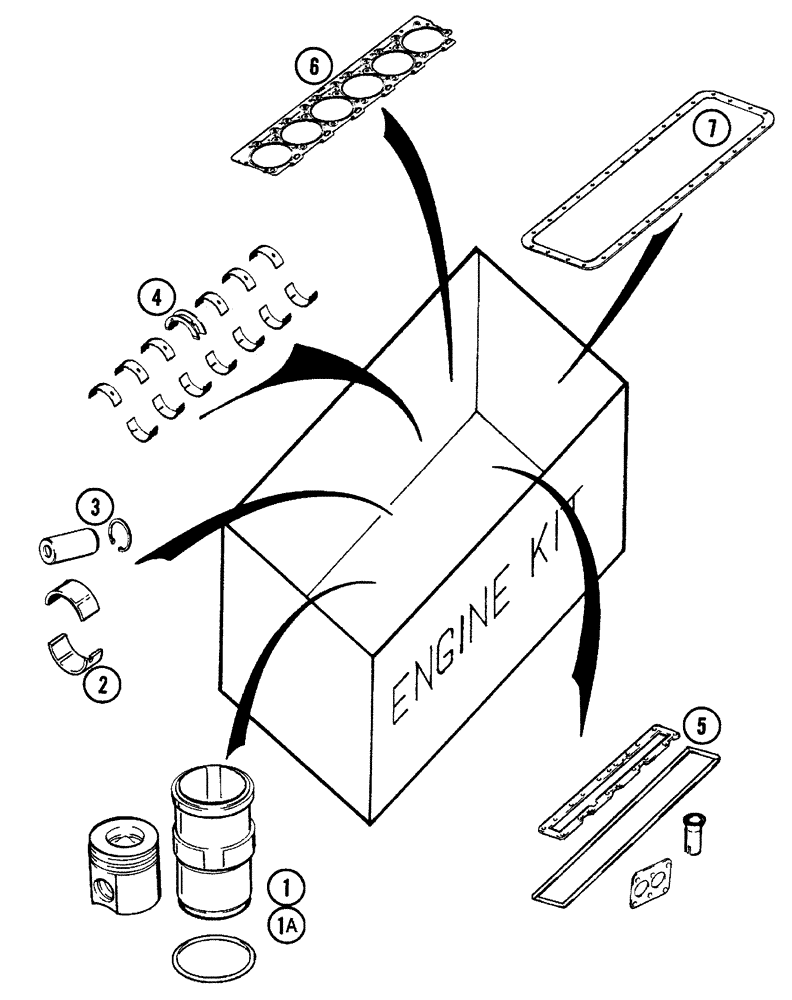

Запчасти Case IH CPX610 (02-29) - KIT ENGINE OVERHAUL (01) - ENGINE

A78020

PACKAGE, REPAIR

Engine Overhaul Kit, Inc. 1 - 8

1шт.

1

A77970

PISTON & RINGS KIT

6шт.

See Figure 02-25

1шт.

2

A77563

BEARING SET

Connecting Rod, Standard

6шт.

See Figure 02-22

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

See Figure 02-25

1шт.

4

J945930

BEARING SET

Standard

6шт.

See Figure 02-22

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-23

1шт.

6

A78018

GASKET KIT

Valve Grind

1шт.

See Figure 02-26

1шт.

7

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

See Figure 02-18

1шт.

8

J938160

OIL PAN GASKET SET

Oil Pan

1шт.

See Figure 02-16

1шт.
