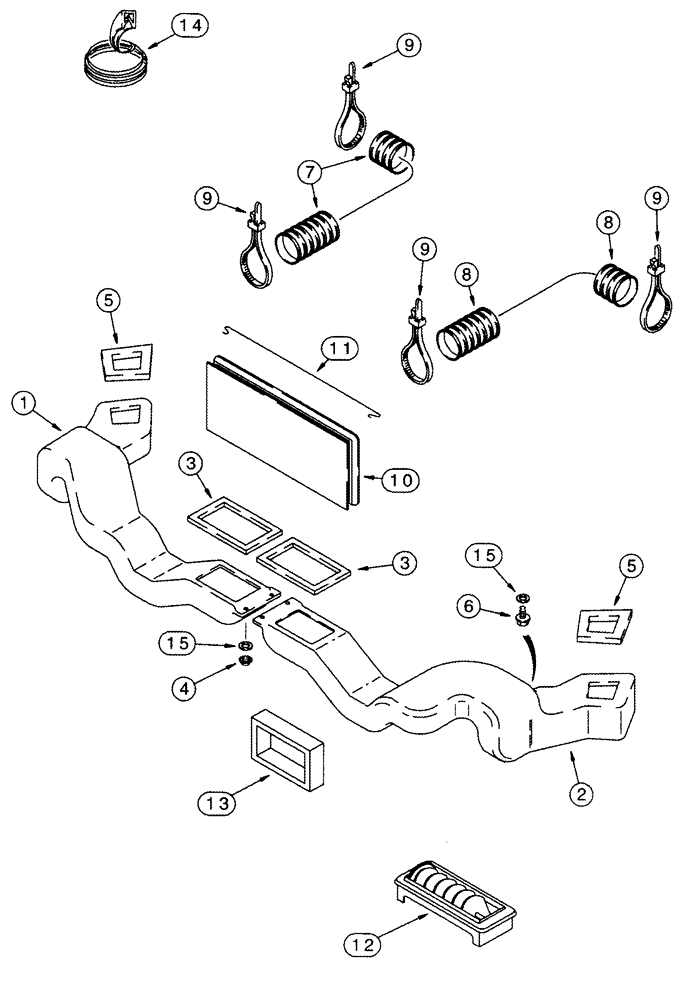

Запчасти Case IH CPX620 (09E-15) - HEATER / AIR CONDITIONING - LOUVERS AND AIR DUCTS (10) - CAB & AIR CONDITIONING

1

129225A2

AIR DUCT

LH

1шт.

2

129227A2

AIR DUCT

RH

1шт.

3

129228A4

FOAM INSULATION

2шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

5

196542A2

FOAM INSULATION

2шт.

6

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

7

380524A1

HOSE,65.5mm ID x 545mm L

Cut From 380526A1

1шт.

8

383833A1

TUBE

710 mm (28 in), Cut From 236559A1

1шт.

9

306132C1

CABLE TIE,14.5" L

CABLE STRAP Tie, 14"

4шт.

10

120486A2

FILTER

Recirculation

1шт.

11

143486A1

SUPPORT

2шт.

12

1990950C2

VENT

11шт.

13

124999A1

GASKET

2шт.

14

1545944C1

SEAL

127 mm (5 in), Cut From 1330108CX

2шт.

15

495-31022

WASHER,#10

6шт.
