(02-16) - TURBOCHARGER ASSEMBLY - BSN Y6T011701

Запчасти Case IH CPX620 (02-16) - TURBOCHARGER ASSEMBLY - BSN Y6T011701 (01) - ENGINE

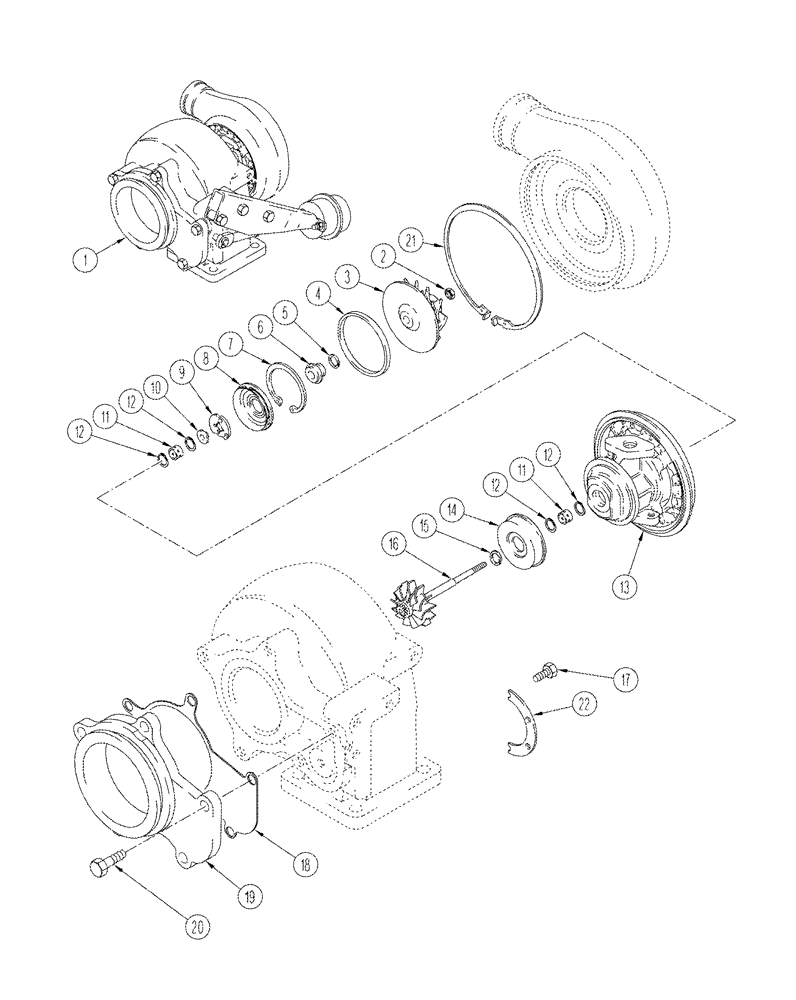

Схема запчастей Case IH CPX620 - (02-16) - TURBOCHARGER ASSEMBLY - BSN Y6T011701 (01) - ENGINE
1
2
22
8
18
12
21
1
12
19
5
6
11
9
16
15
17
20
12
7
12
13
10
4
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J800406

TURBOCHARGER

6TAA-8304, Inc. J919369, J901350, See Figure 2-11; Also Inc., 1 - 16, See Figure 02-14

1шт.

84410510R

REMAN-TURBOCHARGER

CPX620 BSN Y6T011701 (5/05-8/06), Reman for New PN J800406

1шт.

84410510C

CORE-TURBOCHARGER

Return Number

1шт.

1

J591196

CARTRIDGE

6TAA-8304, Inc. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

7

NSS

NOT SOLD SEPARAT

RING

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

RING

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR, Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J537960

GASKET,0.46mm Thk

1шт.

19

J537979

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
