(09-51) - 1063 HEADER DRIVE SHAFTS, BONDIOLI AND PAVESI

Запчасти Case IH 1063 (09-51) - 1063 HEADER DRIVE SHAFTS, BONDIOLI AND PAVESI (09) - CHASSIS

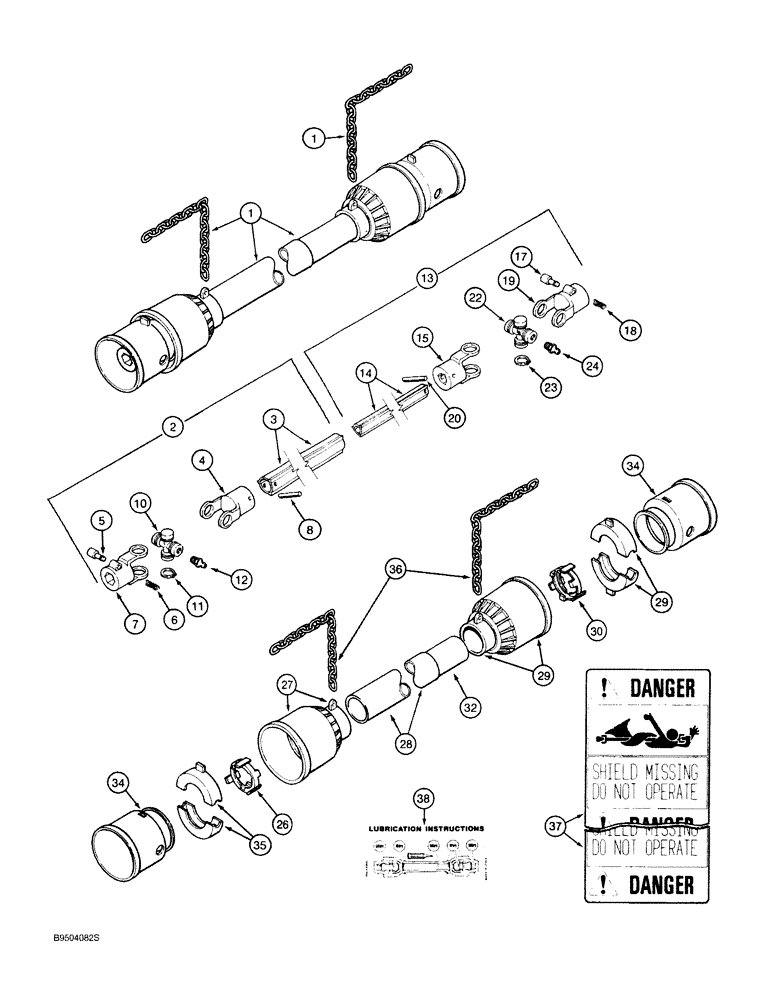

Схема запчастей Case IH 1063 - (09-51) - 1063 HEADER DRIVE SHAFTS, BONDIOLI AND PAVESI (09) - CHASSIS
19
8
35
22
24
4
2
10
23
12
32
38
30
29
29
1
34
34
7
28
18
37
36
17
14
27
11
1
5
13
3
26
15
6
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

100952A1

SHAFT

ASSY., consists of 2-38

1шт.

2

109941A1

SHAFT

female, consists of 3-12

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE, outer

1шт.

4

112405A1

YOKE

1шт.

1311950C1

KIT

LOCK ASSY, includes 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

PIN

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING

1шт.

7

NSS

NOT SOLD SEPARAT

YOKE, outer

1шт.

8

838-51070

LOCK PIN,M10 x 70, Slotted

SPLIT PIN, safety, 10.5 x 70 mm

1шт.

109978A1

PACKAGE

KIT, consists of 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

SPIDER

1шт.

11

800-6130

SNAP RING,M30, Int, Hvy

RING, 30 mm

4шт.

12

933756R1

LUBE NIPPLE,M6 x 1

LUBRICATOR, 6 x 1 mm

1шт.

13

109942A1

SHAFT

male, consists of 14-24

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE, inner

1шт.

15

ZA527129

YOKE

1шт.

1311950C1

KIT

LOCK ASSY, includes 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

PIN

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING

1шт.

19

NSS

NOT SOLD SEPARAT

YOKE, outer

1шт.

20

838-51060

LOCK PIN,M10 x 60, Slotted

PIN, 10 x 60 mm

1шт.

109978A1

PACKAGE

KIT, consists of 22-24

1шт.

22

NSS

NOT SOLD SEPARAT

SPIDER

1шт.

23

800-6130

SNAP RING,M30, Int, Hvy

RING, 30 mm

4шт.

24

933756R1

LUBE NIPPLE,M6 x 1

LUBRICATOR, 6 x 1 mm

1шт.

26

ZA527132

SHIELD

BEARING, outer

1шт.

27

109932A1

OUTER SHIELD

BEARING, outer

1шт.

28

109933A1

TUBE,81.2 mm OD, 300 mm Length

1шт.

29

109938A1

INNER SHIELD

BEARING, inner

1шт.

30

ZA527133

BEARING

1шт.

32

109934A1

TUBE,75 mm OD, 300 mm Length

1шт.

34

109940A1

SHIELD

BEARING

2шт.

35

109939A1

BEARING

2шт.

36

1326632C1

CHAIN

2шт.

37

1326528C1

DECAL

English

1шт.

37

1326529C1

DECAL

French

1шт.

37

1326530C1

DECAL

Spanish

1шт.

37

1326531C1

DECAL

German

1шт.

38

1326752C1

DECAL

1шт.
