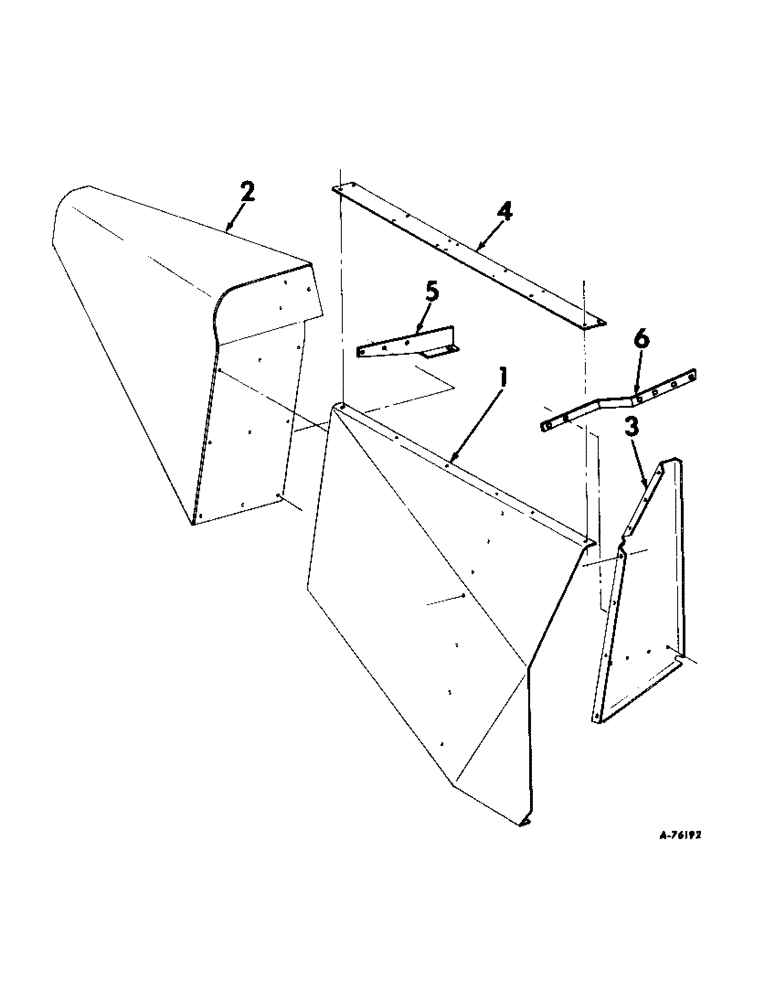

Запчасти Case IH 327WN (H-27) - WHEEL SHIELD ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

153322C91

SHIELD ASSY, wheel LH

1шт.

1

153323C91

SHIELD ASSY, wheel RH, 327WN serial no. 827 and below

1шт.

1

167001C91

SHIELD ASSY, wheel LH

1шт.

1

167002C91

SHIELD ASSY, wheel RH, low silhouette corn heads, 327WN serial no. 8282 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

31шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

30шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

2шт.

2

632247R91

EXTENSION ASSY, wheel shield LH

1шт.

2

632248R91

EXTENSION ASSY, wheel shield RH, 327WN serial no. 827 and below

1шт.

2

165061C91

EXTENSION ASSY, wheel shield LH

1шт.

2

165062C91

EXTENSION ASSY, wheel shield RH, low silhouette corn heads, 327WN serial no. 828 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

10шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

4шт.

3

153326C1

BRACKET, wheel shield LH

1шт.

3

153327C1

BRACKET, wheel shield RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

4шт.

4

632260R1

FILLER WHEEL SHIELD, 28, 30 and 32 inch row spacing, 327WN serial no. 827 and below, 38 and 40 inch row spacing, 327WN serial no. 828 and above, low silhouette corn heads

2шт.

4

632263R1

FILLER, wheel shield, 38 and 40 inch row spacing, 327WN serial no. 827 and below

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

14шт.

5

634393R1

BRACE, wheel shield extension LH

1шт.

5

634394R1

BRACE, wheel shield extension RH

1шт.

6

153328C2

BRACE, wheel shield

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

3шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

4шт.

1203833

WASHER, 7/16 C-Z med lock

4шт.

Q5028

WASHER

15/32 x 1 x 11 ga

2шт.
