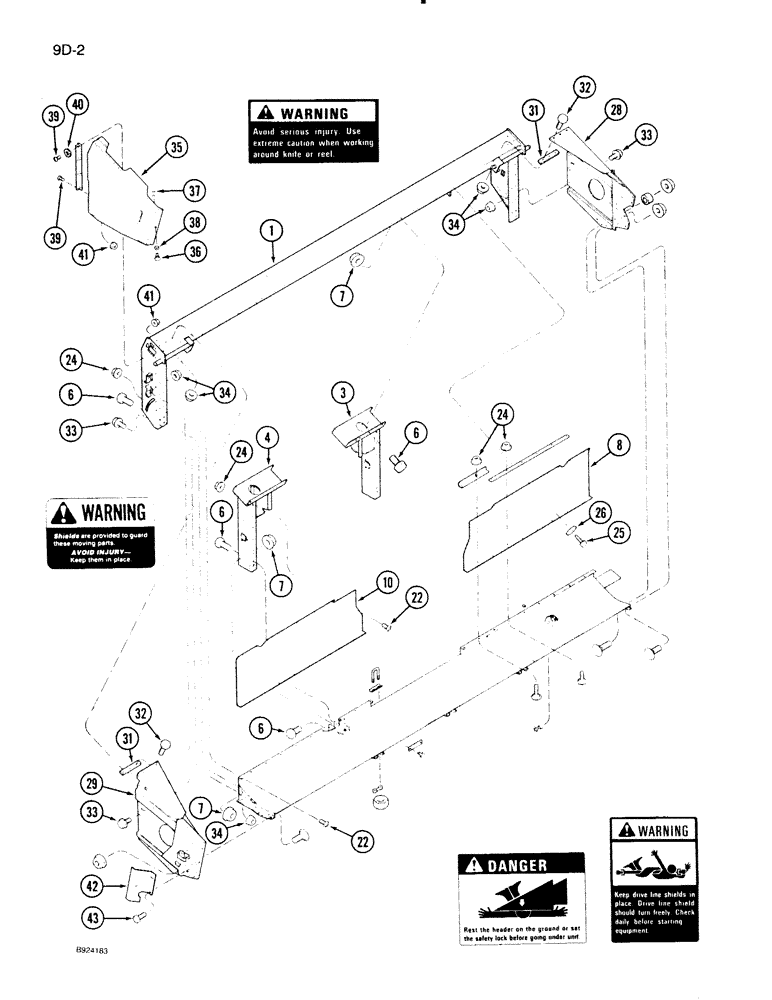

Запчасти Case IH 1020 (9D-02) - MAIN FRAME, 15, 16-1/2, 17-1/2 AND 20 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1326043C91

FRAME

ASSEMBLY - main (15 foot header) (Includes Ref. 66 and 69), if used, see item 1A frame

1шт.

1

1326799C1

FUNNEL

FRAME ASSEMBLY - main (16-1/2 foot header) (Includes Ref. 66 and 69), if used, see item 1A frame

1шт.

1

1326045C91

FUNNEL

FRAME ASSEMBLY - main (17-12 foot header) (Includes Ref. 66 and 69), if used, see item 1A frame

1шт.

1

1326046C91

FUNNEL

FRAME ASSEMBLY - main (20 foot header) (Includes Ref. 66 and 69), if used, see item 1A frame

1шт.

1a

106034A1

FRAME

ASSEMBLY - main (15 foot header), if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive on right-hand side of header).

1шт.

1a

106035A1

FRAME

ASSEMBLY - main (16-1/2 foot header), if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive on right-hand side of header).

1шт.

1a

106036A1

FRAME

ASSEMBLY - main (17-1/2 foot header), if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive on right-hand side of header).

1шт.

1a

106037A1

FRAME

ASSEMBLY - main (20 foot header), if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive on right-hand side of header).

1шт.

3

1307374C2

SUPPORT

POST ASSEMBLY - left vertical (Replaces 1307374C1)

1шт.

4

1307375C2

SUPPORT

POST ASSEMBLY - right vertical (Replaces 1307375C1)

1шт.

6

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

22шт.

6

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch, Grade 8

12шт.

7

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC, Grade 8

32шт.

8

1326056C91

SUPPORT

ASSEMBLY - left back (15 foot header) (See Note)

1шт.

8

1326802C1

SUPPORT

ASSEMBLY - left back (16-1/2 foot header) (See Note)

1шт.

8

1326058C91

SUPPORT

ASSEMBLY - left back (17-1/2 foot header) (See Note)

1шт.

8

1326060C91

SUPPORT

ASSEMBLY - left back (20 foot header) (See Note)

1шт.

10

1326057C92

SUPPORT

- right back (15 foot header)(Includes Ref. 67) (replaces 1326057C91)

1шт.

10

1326803C2

SUPPORT

- right back (16-1/2 foot header)(Includes Ref. 67) (replaces 1326803C1)

1шт.

10

1326059C91

SUPPORT ASSY.

SUPPORT - right back (17-1/2 header)(Includes Ref. 67)

1шт.

10

1326061C91

SUPPORT

- right back (20 foot header)(Includes Ref. 67)

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss, 5/16 NC x 3/4 inch

1шт.

24

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

26

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch (Replaces 24497R1)

1шт.

28

1316878C3

SUPPORT

- left end (Replaces 1316878C2)

1шт.

29

1307357C1

SUPPORT

- right end, if used, see item 29A

1шт.

29a

106062A1

SUPPORT

- right-hand end, if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive on right-hand side of header).

1шт.

31

1313966C1

BAR

- shim

2шт.

32

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

6шт.

33

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

16шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

24шт.

35

1316566C3

SHIELD

- header, right (Replaces 1316566C1 and 1316566C2)

1шт.

36

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - shield fastener

1шт.

37

1326407C1

RETAINER

- shield stud

2шт.

38

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch (Replaces 22265R1)

6шт.

39

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss, 1/4 NC x 1/2 inch

8шт.

40

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces 25707R1) 1/4", SAE

4шт.

41

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

8шт.

42

1316721C1

SUPPORT

ASSEMBLY - right shield front

1шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - lock, 3/8 NC x 1 inch

2шт.
