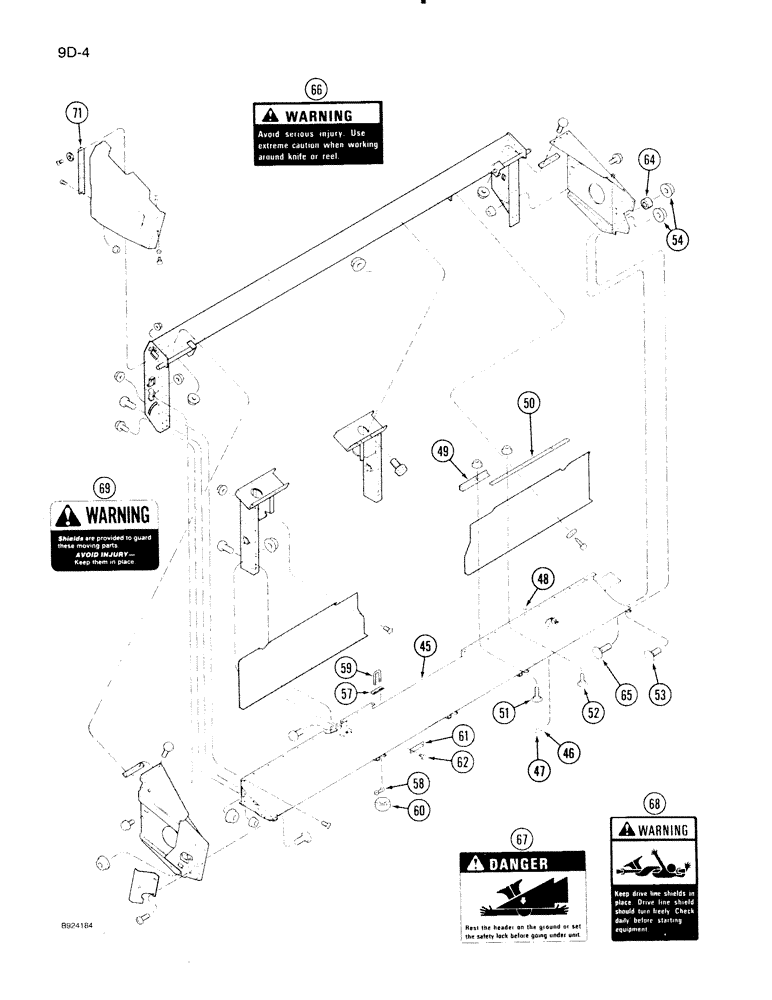

Запчасти Case IH 1020 (9D-04) - MAIN FRAME, 15, 16-1/2, 17-1/2 AND 20 FOOT HEADER (58) - ATTACHMENTS/HEADERS

45

1307500C91

BEAM

FRAME ASSEMBLY - lower (15 foot header)

1шт.

45

1326806C1

SUPPORT

FRAME ASSEMBLY - lower (16-1/2 foot header)

1шт.

45

1307501C92

BEAM

FRAME ASSEMBLY - lower (17-1/2 foot header)(replaces 1307501C91)

1шт.

45

1307502C92

BEAM

FRAME ASSEMBLY - lower (20 foot header) (replaces 1396592C91)

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

- pivot

1шт.

47

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

48

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

49

1316564C1

ANGLE

- stripper extension

2шт.

50

189825C2

STRIPPER

BAR - adjusted auger stripper (Quantity of 4 required for 20 foot header only))

2шт.

51

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

4шт.

52

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

53

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

54

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC

1шт.

57

1307370C1

SUPPORT

- feeder latch U-bolt (If equipped)

2шт.

58

1307371C1

LATCH

SUPPORT - feeder latch

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

- feeder latch

2шт.

60

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

4шт.

61

1316148C1

COVER

- U-bolt access hole (If equipped)

2шт.

62

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - hex washer head tapping, 1/4 x 1/2 inch

4шт.

64

1316234C1

SPACER

- 17/32 x 1-1/8 x 51/64 inch (If equipped)

1шт.

65

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch (If equipped)

1шт.

65

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

66

REF

INSTRUCTION

DECAL - warning, knife and reel (See Page 9D-29)

2шт.

67

REF

INSTRUCTION

DECAL - danger, rest header on ground (See Page 9D-29)

2шт.

68

REF

INSTRUCTION

DECAL - warning, rotating drive lines (See Page 9D-29)

1шт.

69

REF

INSTRUCTION

DECAL - warning, keep shields in place (See Page 9D-29)

1шт.

71

1326230C1

HINGE

- right shield

1шт.
