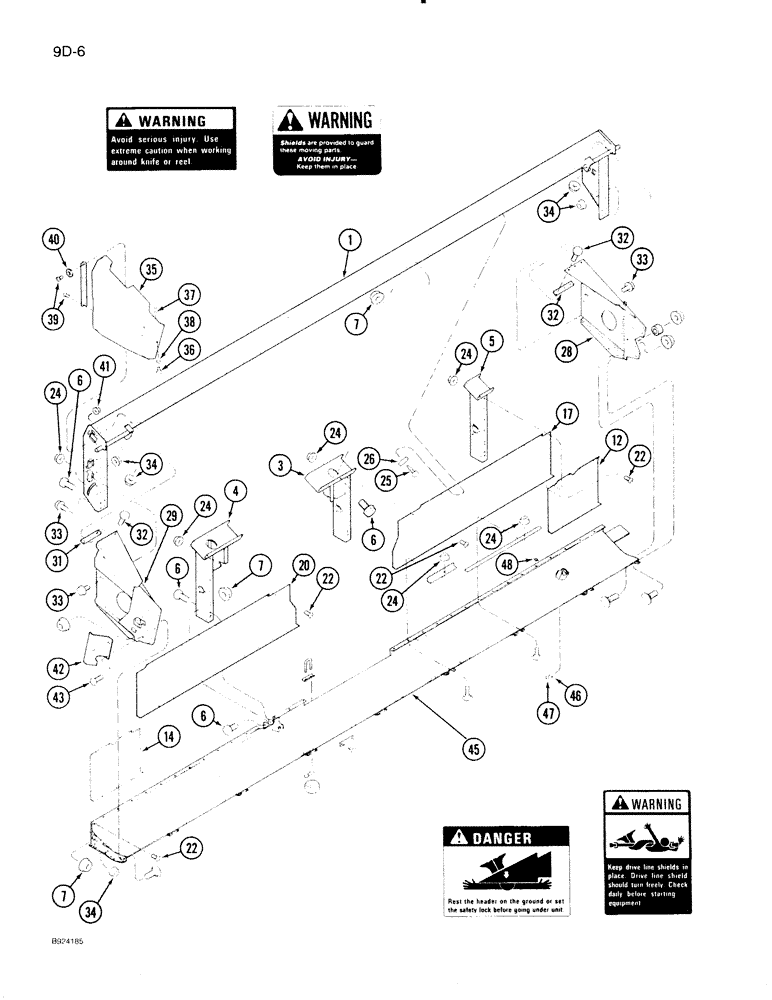

Запчасти Case IH 1020 (9D-06) - MAIN FRAME, 22-1/2, 25 AND 30 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1326048C91

FUNNEL

FRAME - main, 22-1/2 foot, if used, see Ref. 1A

1шт.

1

1326050C91

FUNNEL

FRAME - main, 25 foot, if used, see Ref. 1A

1шт.

1

1326051C91

FUNNEL

FRAME - main, 30 foot, if used, see Ref. 1A

1шт.

1a

106038A1

FRAME

- main, 22-1/2 foot, if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive mounted on right-hand side of header).

1шт.

1a

106039A1

FRAME

- main, 25 foot, if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive mounted on right-hand side of header).

1шт.

1a

106040A1

FRAME

- main, 30 foot, if used, not shown

1шт.

Special parts used on models with split auger and knife drive (auger drive mounted on right-hand side of header).

1шт.

3

1307374C2

SUPPORT

POST ASSEMBLY - left vertical (Replaces 1307374C1)

1шт.

4

1307375C2

SUPPORT

POST ASSEMBLY - right vertical (Replaces 1307375C1)

1шт.

5

1307376C2

SUPPORT

POST ASSEMBLY - (2) intermediate without split drive (Replaces 1307376C1); (1) left-hand intermediate with split drive

1-2шт.

5a

106074A1

SUPPORT

POST - right-hand intermediate, used with (1) 1307376C2 left hand intermediate post

1шт.

Special parts used on models with split auger and knife drive (auger drive mounted on right-hand side of header).

1шт.

6

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

(Replaces 24860R1) Hex, 1/2"-13 x 1", G8, Full Thd

1шт.

6

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch

1шт.

7

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC, Grade 8

56шт.

12

1307093C1

SHEET

SUPPORT - left back (22-1/2 foot header)

1шт.

12

1307095C1

SHEET

SUPPORT - left back (25 foot header)

1шт.

12

1307097C1

SHEET

SUPPORT - left back (30 foot header)

1шт.

14

1307094C1

SHEET

SUPPORT - right back (22-1/2 foot header)

1шт.

14

1307096C1

SHEET

SUPPORT - right back (25 foot header)

1шт.

14

1307098C1

SHEET

SUPPORT - right back (30 foot header)

1шт.

17

1326062C91

SUPPORT

ASSEMBLY - left center back (Includes Ref 67 and 68)

1шт.

20

1326063C92

SUPPORT

ASSEMBLY - right center back (Includes Ref 67) (replaces 1326063C91)

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss, 5/16 NC x 3/4 inch

1шт.

24

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

26

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

28

1316878C3

SUPPORT

ASSEMBLY - left end (Replaces 1316878C2)

1шт.

29

1307357C1

SUPPORT

ASSEMBLY - right end, if used, see Ref. 29A

1шт.

29a

106062A1

SUPPORT

ASSEMBLY - right end, if used

1шт.

Special parts used on models with split auger and knife drive (auger drive mounted on right-hand side of header).

1шт.

31

1313966C1

BAR

- shim

2шт.

32

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

6шт.

33

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

16шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

24шт.

35

1316566C3

SHIELD

- header, right, L.H. side see 9C-12 (Replaces 1316566C1 & 1316566C2)

1шт.

36

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - shield fastener

1шт.

37

1326407C1

RETAINER

- shield stud

2шт.

38

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch (Replaces 22265R1)

6шт.

39

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss, 1/4 NC x 1/2 inch

8шт.

40

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces 25707R1) 1/4", SAE

8шт.

41

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

8шт.

42

1316721C1

SUPPORT

ASSEMBLY - right front shield

1шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- lock, 3/8 NC x 1 inch

2шт.

45

1307503C91

BEAM

FRAME ASSEMBLY - lower (22-1/2 foot header)

1шт.

45

1307504C91

BEAM

FRAME ASSEMBLY - lower (25 foot header)

1шт.

45

1307505C91

BEAM

FRAME ASSEMBLY - lower (30 foot header)

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

- pivot

1шт.

47

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

48

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.
