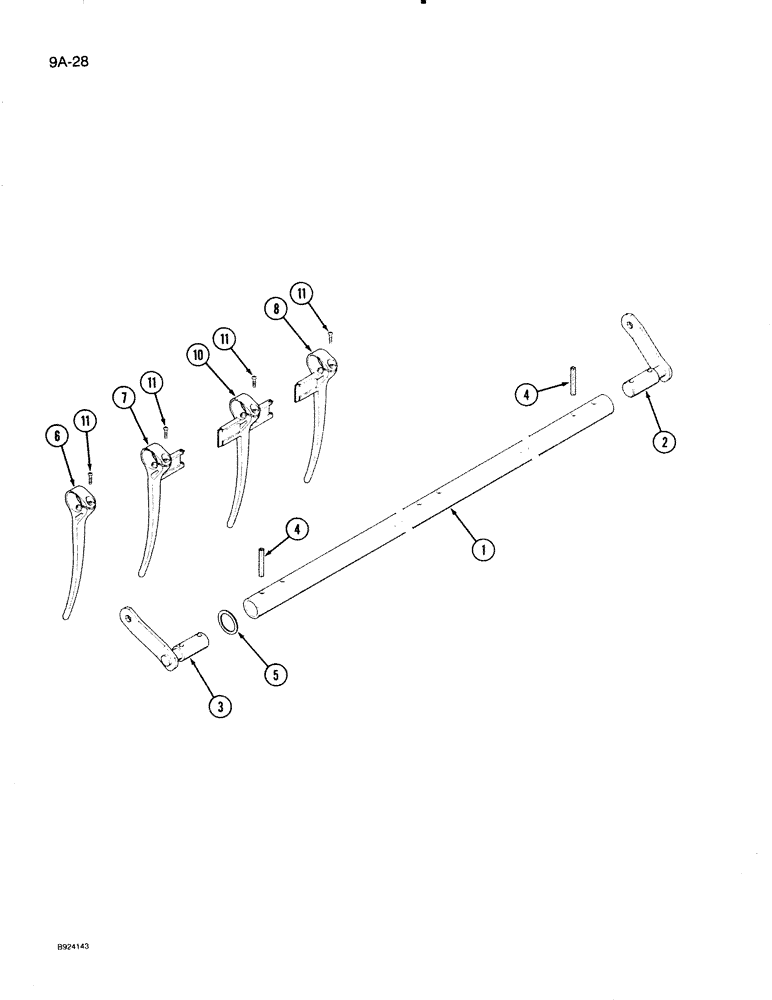

Запчасти Case IH 1020 (9A-28) - 6 BAT REEL, BAT AND PLASTIC TINES, (HART-CARTER) (58) - ATTACHMENTS/HEADERS

1

1989429C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (15 foot header)

6шт.

1

1989430C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (16-1/2 foot header)

6шт.

1

1989431C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (17-1/2 foot header)

6шт.

1

1347079C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (20 foot header) (Double eccentric)

6шт.

1

1994813C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (20 foot header) (Single eccentric)

6шт.

1

1347080C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (22-1/2 foot header)

6шт.

1

1347081C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (25 foot header)

6шт.

1

1347082C2

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (30 foot header)

6шт.

126748A1 PLASTIC THRUST WASHER USED ON ITEMS #I.

1шт.

2

1347094C1

BRACKET

- crank arm, left

6шт.

3

1347095C1

ARM

BRACKET - crank arm, right (Double eccentric)

6шт.

4

838-1840

LOCK PIN,8mm OD x 40mm L, Slotted

PIN - spring

1шт.

5

1989468C1

WASHER

- flat, 35.6 x 46 x 2.0 mm

1шт.

1989441C1

KIT

- tine, end, Incl 6 Fingers

1шт.

6

NSS

NOT SOLD SEPARAT

TINE - end

6шт.

11

24369R1

SELF-TAP SCREW

- pan head cross recess, tapping, No. 6-20 x 5/8 inch

6шт.

1989439C1

KIT

- tine, right, Incl 6 Fingers

1шт.

7

NSS

NOT SOLD SEPARAT

TINE - right

6шт.

11

24369R1

SELF-TAP SCREW

- pan head cross recess, tapping, No. 6-20 x 5/8 inch

6шт.

1989440C1

KIT

- tine, left, Incl 6 Fingers

1шт.

8

NSS

NOT SOLD SEPARAT

TINE - left

6шт.

11

24369R1

SELF-TAP SCREW

- pan head cross recess, tapping, No. 6-20 x 5/8 inch

6шт.

1989438C1

KIT

- tine, full, Incl 10 Fingers

1шт.

10

NSS

NOT SOLD SEPARAT

TINE - full

10шт.

11

24369R1

SELF-TAP SCREW

- pan head cross recess, tapping, No. 6-20 x 5/8 inch

10шт.
