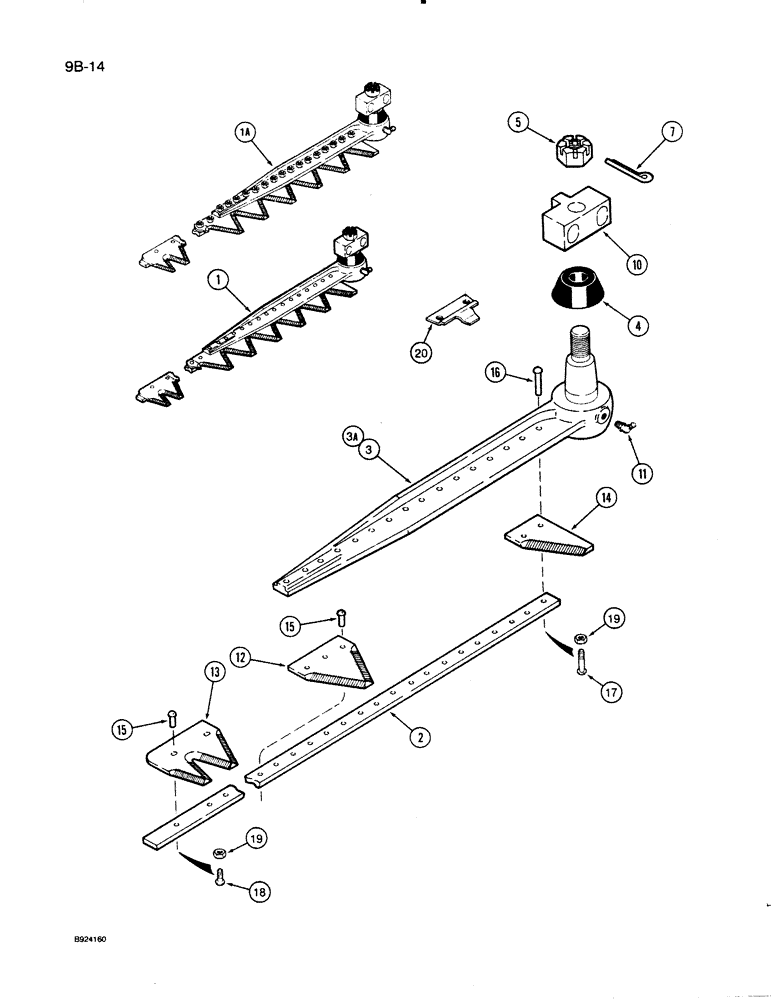

Запчасти Case IH 1020 (9B-14) - KNIFE ASSEMBLY - RIVETED, 3 INCH, TRW (58) - ATTACHMENTS/HEADERS

1

1307281C92

KNIFE ASSY

KNIFE ASSEMBLY - 15 foot, used with rivets, no longer available, order 1307281C96 knife, item 1A and (14) clips, item 20

1шт.

1

1326835C2

KNIFE ASSY

KNIFE ASSEMBLY - 16-1/2 foot, used with rivets, no longer available, order 1326835C6 knife, item 1A and (15) clips, item 20

1шт.

1

1307282C92

KNIFE ASSY

KNIFE ASSEMBLY - 17-1/2 foot, used with rivets, no longer available, order 1307282C96 knife, item 1A and (17) clips, item 20

1шт.

1

1307283C92

KNIFE ASSY

KNIFE ASSEMBLY - 20 foot, used with rivets, no longer available, order 1307283C96 knife, item 1A and (19) clips, item 20 (clips not required with 20 foot header)

1шт.

1

1307284C92

KNIFE ASSY

KNIFE ASSEMBLY - 22-1/2 foot, used with rivets, no longer available, order 1307284C96 knife, item 1A and (22) clips, item 20

1шт.

1

1307285C92

KNIFE ASSY

KNIFE ASSEMBLY - 25 foot, used with rivets, no longer available, order 1307285C96 knife, item 1A and (24) clips, item 20

1шт.

1

1307286C92

KNIFE ASSY

KNIFE ASSEMBLY - 30 foot, used with rivets, no longer available, order 1307286C96 knife, item 1A and (29) clips, item 20

1шт.

1a

1307281C96

KNIFE ASSY

KNIFE ASSEMBLY - 15 foot, used with bolts and nuts

1шт.

1a

1326835C6

KNIFE ASSY

KNIFE ASSEMBLY - 16-1/2 foot, used with bolts and nuts

1шт.

1a

1307282C96

KNIFE ASSY

KNIFE ASSEMBLY - 17-1/2 foot, used with bolts and nuts

1шт.

1a

1307283C96

KNIFE ASSY

KNIFE ASSEMBLY - 20 foot, used with bolts and nuts

1шт.

1a

1307284C96

KNIFE ASSY

KNIFE ASSEMBLY - 22-1/2 foot, used with bolts and nuts

1шт.

1a

1307285C96

KNIFE ASSY

KNIFE ASSEMBLY - 25 foot, used with bolts and nuts

1шт.

1a

1307286C96

KNIFE ASSY

KNIFE ASSEMBLY - 30 foot, used with bolts and nuts

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1316161C91

KNIFE HEAD

HEAD ASSEMBLY - used with item 1 knife (Alternate part is 1307297C91, see Figure 9B-18)

1шт.

3a

1316161C93

KNIFE HEAD

HEAD ASSEMBLY - used with item 1A knife

1шт.

4

1345491C1

DUST CAP

COVER - dust

1шт.

5

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

1шт.

7

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

10

1313797C1

BLOCK

BOSS - knife

1шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

12

826720C2

KNIFE SECTION

SECTION - knife, 3 inch overserrated

1шт.

REF # 12 826720C2. NEW "STA-SHARP" COARSE SECTION IS 112074A1

1шт.

13

148200C1

KNIFE SECTION

SECTION - knife, 3 inch, right end

1шт.

14

1316030C1

KNIFE SECTION

SECTION - knife, 3 inch, plain half

1шт.

15

991059R91

RIVET

- oval head, No. 6 x 5/8 inch (Package of 302), used with item 1 knife, if used

1шт.

16

2195

RIVET

- oval head, No. 5-1/2 x 1-1/8 inch (Package of 75), used with item 1 knife, if used

16шт.

17

1979166C1

BOLT

- truss head ribbed neck, No. 12-24 x 1-1/8 inch, used with item 1A knife, if used

16шт.

18

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

SCREW - truss head ribbed neck, No. 12-24 x 5/8 inch, used with item 1A knife, if used

1шт.

19

1954816C1

LOCK NUT

NUT - hex lock, No. 12-24

1шт.

20

1307280C3

KNIFE CLIP

CLIP - knife hold down, if used

1шт.
