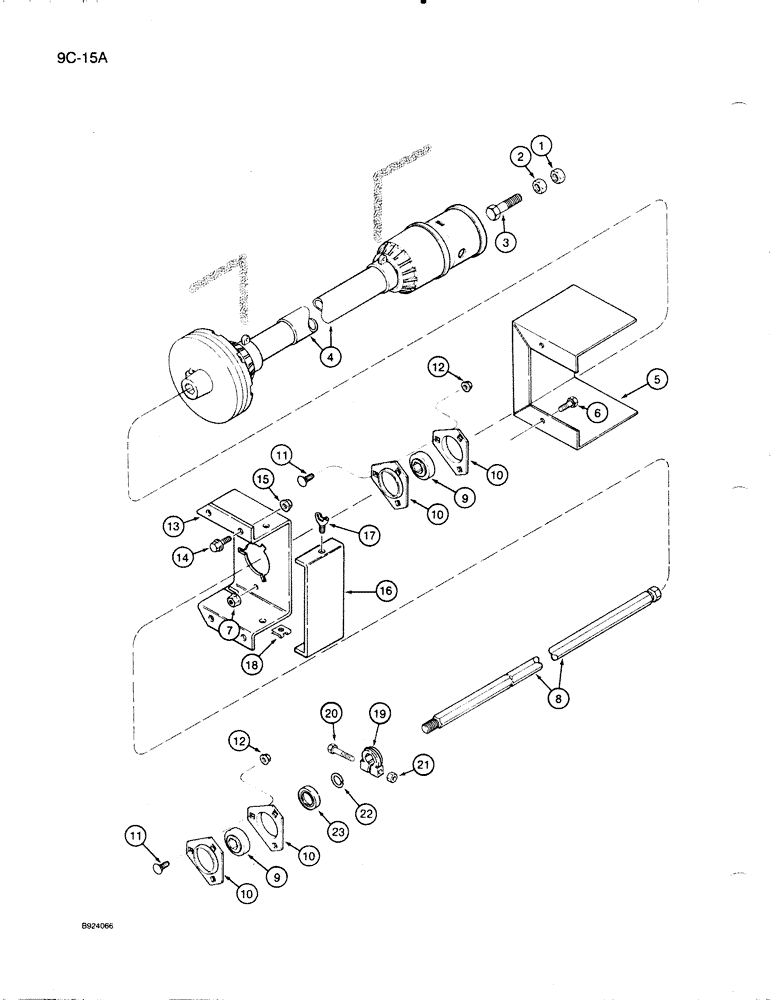

Запчасти Case IH 1020 (9C-15A) - AUGER JACKSHAFT DRIVE, (MOUNTED ON RIGHT-HAND SIDE OF HEADER, 15 AND 16-1/2 FT HEADER (58) - ATTACHMENTS/HEADERS

1

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

2

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

3

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

4

106044A1

DRIVE SHAFT

JOINT ASSEMBLY - drive shaft (See Figure 9C-27A)

1шт.

5

106023A1

SHIELD

- clutch

1шт.

6

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex, 1/4 NC x 3/4 inch

2шт.

7

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

2шт.

8

106066A1

JACKSHAFT

BAR - jackshaft

1шт.

9

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSEMBLY - jackshaft

2шт.

10

180955C1

FLANGED BEARING,0.375"

FLANGE - jackshaft bearing

4шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

6шт.

13

106084A1

SUPPORT

ASSEMBLY - jackshaft

1шт.

14

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

2шт.

16

106087A1

SHIELD

- cover

1шт.

17

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

- thumb, 5/16 inch

2шт.

18

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

19

1327106C1

COLLAR

- shaft, main

1шт.

20

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

21

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.

22

575186R1

SNAP RING

RING - retaining, slip clutch

1шт.

23

935856R1

BUSHING

- drive shaft

1шт.
