(9B-14) - KNIFE DRIVE SHIELD AND SUPPORTS

Запчасти Case IH 1020 (9B-14) - KNIFE DRIVE SHIELD AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

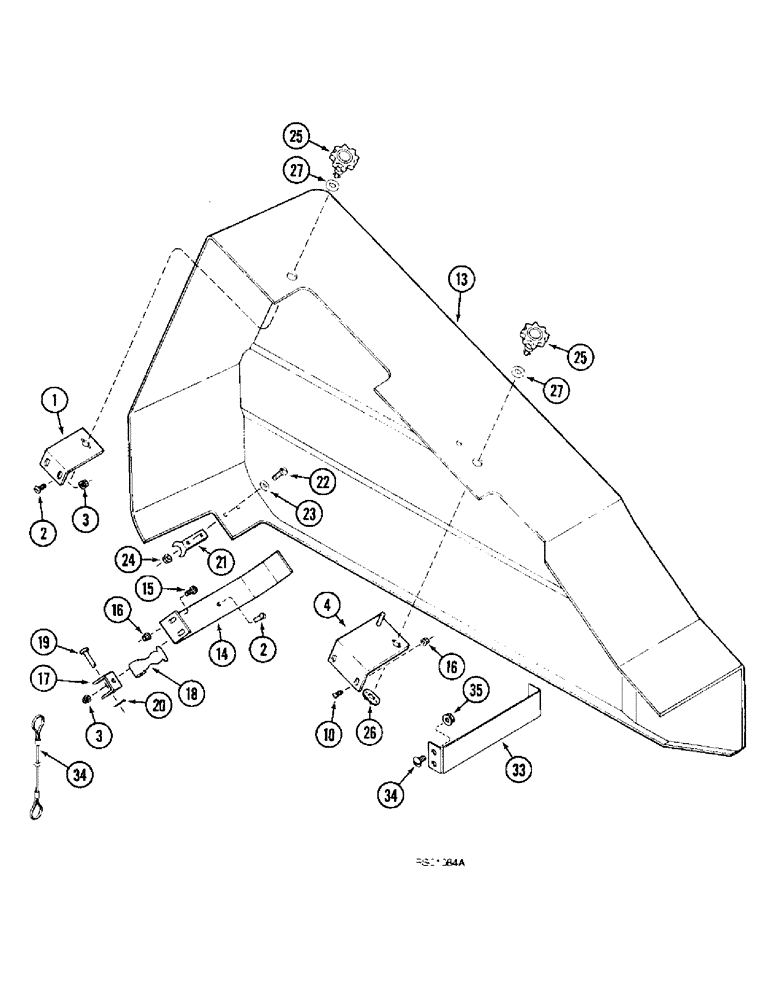

Схема запчастей Case IH 1020 - (9B-14) - KNIFE DRIVE SHIELD AND SUPPORTS (09) - CHASSIS/ATTACHMENTS
10
18
13
35
3
19
33
20
23
14
27
21
26
2
22
16
1
15
25
4
16
27
25
34
2
24
3
34
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1316510C1

SUPPORT

- shield, upper rear

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

4

1326758C1

SUPPORT

- shield, upper front

1шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

13

1316693C3

SHIELD

- knife drive

1шт.

14

1326386C1

SUPPORT

- shield, lower rear

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

16

231-5146

FLANGE NUT,3/8"-16

4шт.

17

188103C1

BRACKET

- hood anchor

1шт.

18

494307C1

LATCH

HOOK - hold down, latch

1шт.

19

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

21

L105124

LATCH HOOK

HOOK - latch

1шт.

22

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

23

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

2шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

25

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - fastener, shield

2шт.

26

1326407C1

RETAINER

- shield stud

4шт.

27

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

1шт.

33

131988A1

SUPPORT

BRACKET - shield, front

1шт.

35

231-5146

FLANGE NUT,3/8"-16

2шт.

37

126396A1

CABLE

- shield anchor

1шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
