(9B-16) - KNIFE JACKSHAFT DRIVE, 15.0 AND 16.5 FOOT HEADER

Запчасти Case IH 1020 (9B-16) - KNIFE JACKSHAFT DRIVE, 15.0 AND 16.5 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

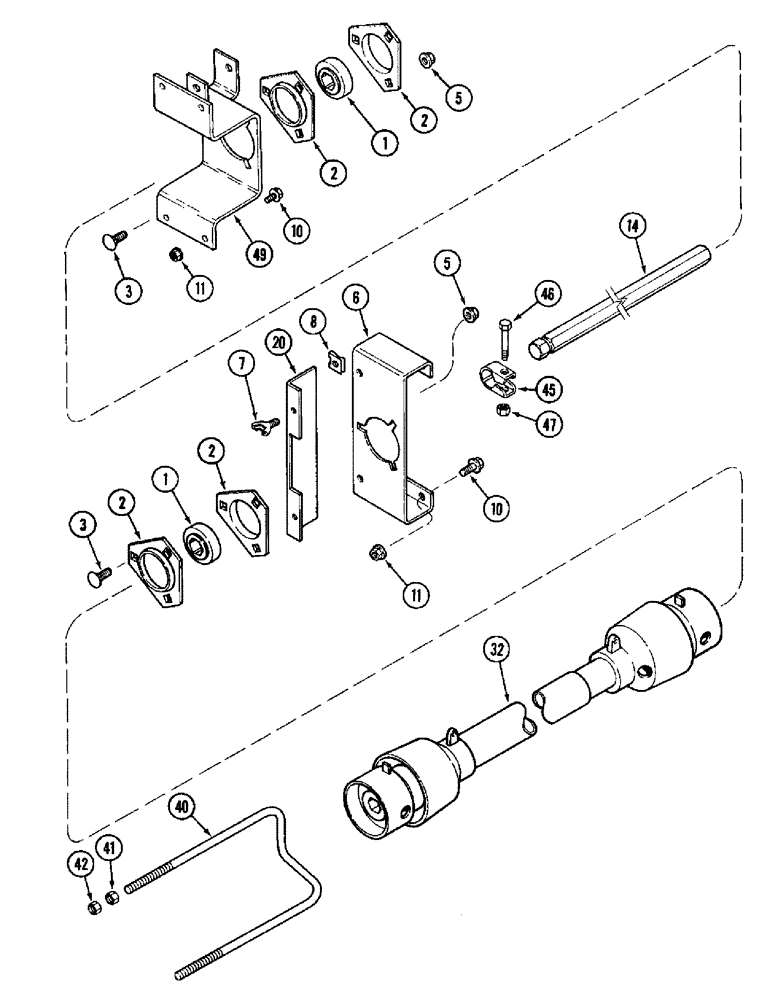

Схема запчастей Case IH 1020 - (9B-16) - KNIFE JACKSHAFT DRIVE, 15.0 AND 16.5 FOOT HEADER (09) - CHASSIS/ATTACHMENTS
46
40
42
5
5
1
2
3
6
2
49
8
45
1
7
3
10
2
11
14
20
47
2
11
41
32
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - ball, jackshaft

2шт.

2

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

4шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

5

231-5146

FLANGE NUT,3/8"-16

6шт.

6

1320892C1

SUPPORT

- jackshaft

1шт.

7

183-123

THUMB SCREW

- thumb with shoulder, 5/16 NC x 3/4 inch

2шт.

8

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

10

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

14

125969A1

JACKSHAFT

BAR - jackshaft

1шт.

20

1326597C1

SHIELD

- clutch

1шт.

32

REF

INSTRUCTION

DRIVE SHAFT ASSEMBLY - knife, See Figures 9B-24 - 9B-28

1шт.

40

138005A1

HANGER

- drive line

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

42

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

45

225265R1

CLAMP

- jackshaft

1шт.

46

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

47

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

49

138653A1

SUPPORT

- knife drive

1шт.
