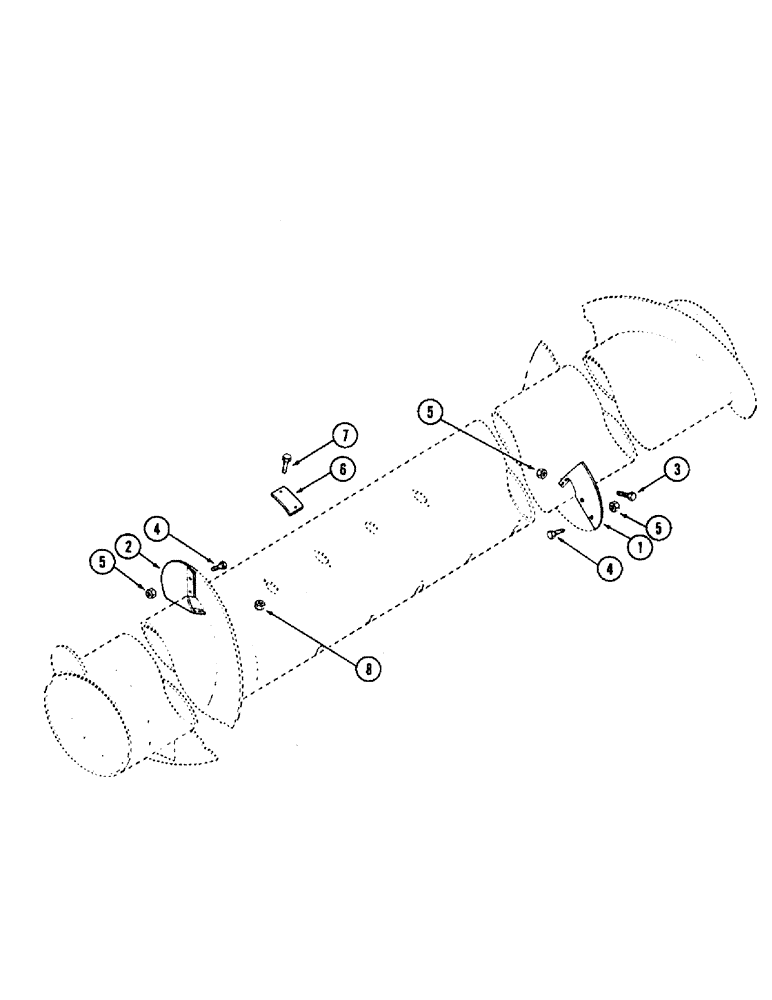

Запчасти Case IH 1020 (9C-06) - AUGER FLIGHT EXTENSION (09) - CHASSIS/ATTACHMENTS

1

1308445C2

EXTENSION

- auger flight, left-hand

1шт.

2

1308446C2

EXTENSION

- auger flight, right-hand

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

2шт.

4

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

6шт.

6

167823C1

COVER

- finger hole

2шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

8

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.
