(C07.01[01]) - Senders and Switches {CASE IH 10.3L}

Запчасти Case IH 7000 (C07.01[01]) - Senders and Switches {CASE IH 10.3L} (55) - ELECTRICAL SYSTEMS

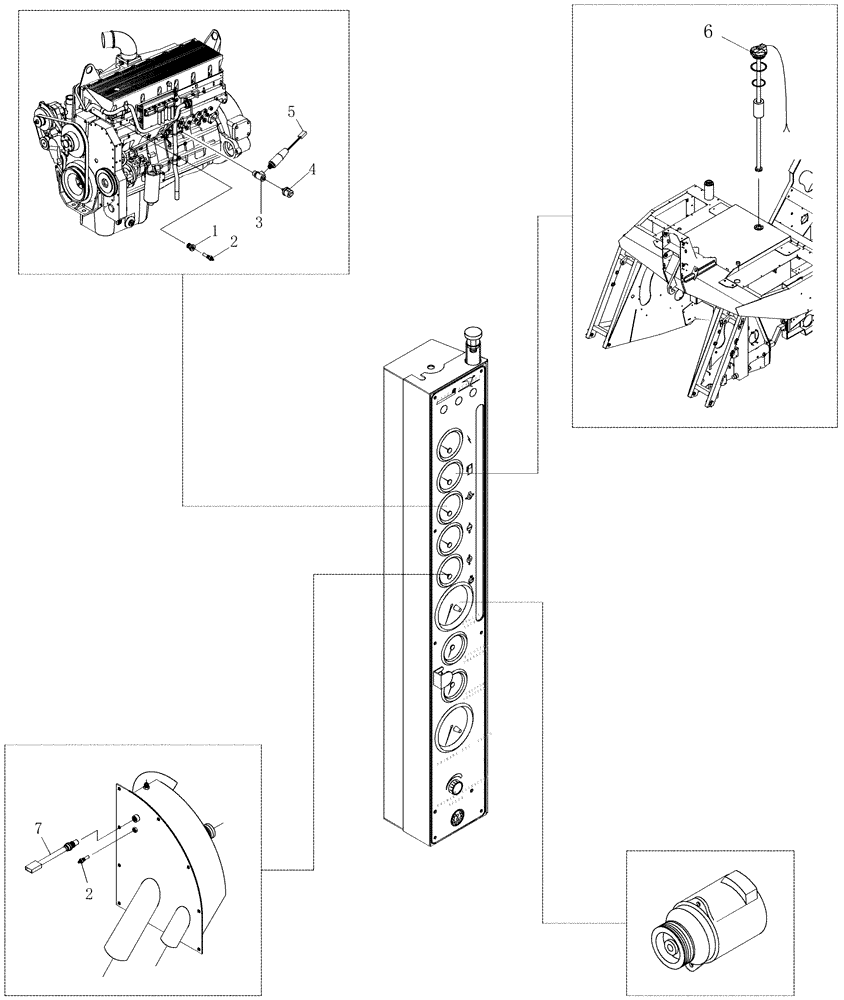

Схема запчастей Case IH 7000 - (C07.01[01]) - Senders and Switches {CASE IH 10.3L} (55) - ELECTRICAL SYSTEMS
4
speed
pressure
6
2
b/cutter
tacho
2
7
austoft
primary extractor
primary ext. tacho
engine
case
pressure
5
3
chopper
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87461294

ADAPTER,1/8" - 27

1шт.

2

134483

2шт.

3

87463429

ADAPTER

1шт.

4

87463428

PRESSURE SWITCH

1шт.

5

87406896

SWITCH

1шт.

6

87412622

SENDER UNIT

SENDER

1шт.

7

198136

SPARE PART

1шт.
